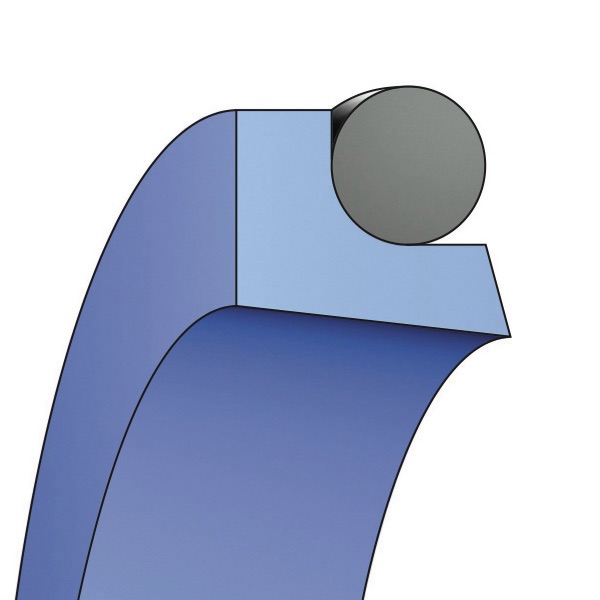

RSSingle-acting Wipers
Single-acting O-Ring energized scraper, it prevents the ingress of contaminant increasing effective system service life. Main characteristics are: low friction, no stick-slip and high wiper effect guaranteed over time. Different materials available on request for special applications.
Seal capabilities
- Temperature: from -50 to 210 °C
- Max. speed: 15 m/s
Applications
This product is interchangeable with:
1841 - WTF - S55123 - LWC - 21A03 - GHF - AD-AT - 335 - A80 - SIA - S2A - S55121 - S55125 - 21A01 - 21A02 - 21A03 - 21A05 - S1A - 55121 - 55125 - 55123
S1A 14 20,8 5 S1A 14 20.8 5 GHF/A 014 WEM300140 WEM300140-T05N 21A01 0140 A 19 21A01 0140 A 24 21A01 0140 A19 21A01-0140-A24 WTF 0140 A 12/4470 WTF-0140-A-12/4470 WTF/A 14 12/4470 WTF0140A-12/4470
S1A 34 40,8 5 S1A 34 40.8 5 GHF/A 034 WEM300340 WEM300340-T05N 21A01 0340 A 19 21A01 0340 A 24 21A01 0340 A19 21A01-0340-A24 WTF 0340 A 12/4470 WTF-0340-A-12/4470 WTF/A 34 12/4470 WTF0340A-12/4470
S1AV 14 18,8 3,7 S1AV 14 18.8 3.7 GHF/A/L 014 WEL500140 WEL500140-T05V 21A00 0140 E 19 21A00 0140 E 24 21A00-0140-E24 WTF/A-L 14 12/9775 WTF/L 0140 A 12/9775 WTF-L-0140-A-12/9775 WTF/L0140A-12/9775
S1AV 10 14,8 3,7 S1AV 10 14.8 3.7 GHF/A 010 WEM300100 WEM300100-T05V 21A00 0100 E 19 21A00 0100 E 24 21A00-0100-E24 WTF 0100 A 12/9775 WTF-0100-A-12/9775 WTF/A 10 12/9775 WTF0100A-12/9775
S1AV 20 26,8 5 S1AV 20 26.8 5 GHF/A 020 WEM300200 WEM300200-T05V 21A01 0200 E 19 21A01 0200 E 24 21A01-0200-E24 WTF 0200 A 12/9775 WTF-0200-A-12/9775 WTF/A 20 12/9775 WTF0200A-12/9775
S1AV 30 36,8 5 S1AV 30 36.8 5 GHF/A 030 WEM300300 WEM300300-T05V 21A01 0300 E 19 21A01 0300 E 24 21A01-0300-E24 WTF 0300 A 12/9775 WTF-0300-A-12/9775 WTF/A 30 12/9775 WTF0300A-12/9775
S1AV 40 46,8 5 S1AV 40 46.8 5 GHF/A 040 WEM300400 WEM300400-T05V 21A01 0400 E 19 21A01 0400 E 24 21A01-0400-E24 WTF 0400 A 12/9775 WTF-0400-A-12/9775 WTF/A 40 12/9775 WTF0400A-12/9775
S1A 18 22,8 3,7 S1A 18 22.8 3.7 GHF/A/L 018 WEL500180 WEL500180-T05N 21A00 0180 A 19 21A00 0180 A 24 21A00 0180 A19 21A00-0180-A24 WTF/A-L 18 12/4470 WTF/L 0180 A 12/4470 WTF-L-0180-A-12/4470 WTF/L0180A-12/4470
S1A 30 36,8 5 S1A 30 36.8 5 GHF/A 030 WEM300300 WEM300300-T05N 21A01 0300 A 19 21A01 0300 A 24 21A01 0300 A19 21A01-0300-A24 WTF 0300 A 12/4470 WTF-0300-A-12/4470 WTF/A 30 12/4470 WTF0300A-12/4470
S1A 40 46,8 5 S1A 40 46.8 5 GHF/A 040 WEM300400 WEM300400-T05N 21A01 0400 A 19 21A01 0400 A 24 21A01 0400 A19 21A01-0400-A24 WTF 0400 A 12/4470 WTF-0400-A-12/4470 WTF/A 40 12/4470 WTF0400A-12/4470
S1AV 34 40,8 5 S1AV 34 40.8 5 GHF/A 034 WEM300340 WEM300340-T05V 21A01 0340 E 19 21A01 0340 E 24 21A01-0340-E24 WTF 0340 A 12/9775 WTF-0340-A-12/9775 WTF/A 34 12/9775 WTF0340A-12/9775
S1AV 14 20,8 5 S1AV 14 20.8 5 GHF/A 014 WEM300140 WEM300140-T05V 21A01 0140 E 19 21A01 0140 E 24 21A01-0140-E24 WTF 0140 A 12/9775 WTF-0140-A-12/9775 WTF/A 14 12/9775 WTF0140A-12/9775
S1A 18 24,8 5 S1A 18 24.8 5 GHF/A 018 WEM300180 WEM300180-T05N 21A01 0180 A 19 21A01 0180 A 24 21A01 0180 A19 21A01-0180-A24 WTF 0180 A 12/4470 WTF-0180-A-12/4470 WTF/A 18 12/4470 WTF0180A-12/4470
S1A 28 34,8 5 S1A 28 34.8 5 GHF/A 028 WEM300280 WEM300280-T05N 21A01 0280 A 19 21A01 0280 A 24 21A01 0280 A19 21A01-0280-A24 WTF 0280 A 12/4470 WTF-0280-A-12/4470 WTF/A 28 12/4470 WTF0280A-12/4470
S1A 30 34,8 3,7 S1A 30 34.8 3.7 GHF/A/L 030 WEL500300 WEL500300-T05N 21A00 0300 A 19 21A00 0300 A 24 21A00 0300 A19 21A00-0300-A24 WTF/A-L 30 12/4470 WTF/L 0300 A 12/4470 WTF-L-0300-A-12/4470 WTF/L0300A-12/4470
S1A 40 44,8 3,7 S1A 40 44.8 3.7 GHF/A/L 040 WEL500400 WEL500400-T05N 21A00 0400 A 19 21A00 0400 A 24 21A00 0400 A19 21A00-0400-A24 WTF/A-L 40 12/4470 WTF/L 0400 A 12/4470 WTF-L-0400-A-12/4470 WTF/L0400A-12/4470
S1AV 30 34,8 3,7 S1AV 30 34.8 3.7 GHF/A/L 030 WEL500300 WEL500300-T05V 21A00 0300 E 19 21A00 0300 E 24 21A00-0300-E24 WTF/A-L 30 12/9775 WTF/L 0300 A 12/9775 WTF-L-0300-A-12/9775 WTF/L0300A-12/9775
S1AV 40 44,8 3,7 S1AV 40 44.8 3.7 GHF/A/L 040 WEL500400 WEL500400-T05V 21A00 0400 E 19 21A00 0400 E 24 21A00-0400-E24 WTF/A-L 40 12/9775 WTF/L 0400 A 12/9775 WTF-L-0400-A-12/9775 WTF/L0400A-12/9775
S1A 10 14,8 3,7 S1A 10 14.8 3.7 GHF/A 010 WEM300100 WEM300100-T05N 21A00 0100 A 19 21A00 0100 A 24 21A00 0100 A19 21A00-0100-A24 WTF 0100 A 12/4470 WTF-0100-A-12/4470 WTF/A 10 12/4470 WTF0100A-12/4470
S1A 20 26,8 5 S1A 20 26.8 5 GHF/A 020 WEM300200 WEM300200-T05N 21A01 0200 A 19 21A01 0200 A 24 21A01 0200 A19 21A01-0200-A24 WTF 0200 A 12/4470 WTF-0200-A-12/4470 WTF/A 20 12/4470 WTF0200A-12/4470
S1A 35 39,8 3,7 S1A 35 39.8 3.7 GHF/A/L 035 WEL500350 WEL500350-T05N 21A00 0350 A 19 21A00 0350 A 24 21A00 0350 A19 21A00-0350-A24 WTF/A-L 35 12/4470 WTF/L 0350 A 12/4470 WTF-L-0350-A-12/4470 WTF/L0350A-12/4470
S1AV 18 24,8 5 S1AV 18 24.8 5 GHF/A 018 WEM300180 WEM300180-T05V 21A01 0180 E 19 21A01 0180 E 24 21A01-0180-E24 WTF 0180 A 12/9775 WTF-0180-A-12/9775 WTF/A 18 12/9775 WTF0180A-12/9775
S1AV 16 20,8 3,7 S1AV 16 20.8 3.7 GHF/A/L 016 WEL500160 WEL500160-T05V 21A00 0160 E 19 21A00 0160 E 24 21A00-0160-E24 WTF/A-L 16 12/9775 WTF/L 0160 A 12/9775 WTF-L-0160-A-12/9775 WTF/L0160A-12/9775
S1AV 22 26,8 3,7 S1AV 22 26.8 3.7 GHF/A/L 022 WEL500220 WEL500220-T05V 21A00 0220 E 19 21A00 0220 E 24 21A00-0220-E24 WTF/A-L 22 12/9775 WTF/L 0220 A 12/9775 WTF-L-0220-A-12/9775 WTF/L0220A-12/9775
GHF/A/P 028 21A02 0280 E 19 21A02 0280 E 24 21A02-0280-E24 WTF/A-P 28 12/9775 WTF/P 0280 A 12/9775 WTF-P-0280-A-12/9775 WTF/P0280A-12/9775 S1AV 28 36,8 6 S1AV 28 36.8 6 WEH100280 WEH100280-T05V
S1A 22 28,8 5 S1A 22 28.8 5 GHF/A 022 WEM300220 WEM300220-T05N 21A01 0220 A 19 21A01 0220 A 24 21A01 0220 A19 21A01-0220-A24 WTF 0220 A 12/4470 WTF-0220-A-12/4470 WTF/A 22 12/4470 WTF0220A-12/4470
S1AV 25 31,8 5 S1AV 25 31.8 5 GHF/A 025 WEM300250 WEM300250-T05V 21A01 0250 E 19 21A01 0250 E 24 21A01-0250-E24 WTF 0250 A 12/9775 WTF-0250-A-12/9775 WTF/A 25 12/9775 WTF0250A-12/9775
S1A 32 38,8 5 S1A 32 38.8 5 GHF/A 032 WEM300320 WEM300320-T05N 21A01 0320 A 19 21A01 0320 A 24 21A01 0320 A19 21A01-0320-A24 WTF 0320 A 12/4470 WTF-0320-A-12/4470 WTF/A 32 12/4470 WTF0320A-12/4470
S1AV 35 41,8 5 S1AV 35 41.8 5 GHF/A 035 WEM300350 WEM300350-T05V 21A01 0350 E 19 21A01 0350 E 24 21A01-0350-E24 WTF 0350 A 12/9775 WTF-0350-A-12/9775 WTF/A 35 12/9775 WTF0350A-12/9775
S1A 16 20,8 3,7 S1A 16 20.8 3.7 GHF/A/L 016 WEL500160 WEL500160-T05N 21A00 0160 A 19 21A00 0160 A 24 21A00 0160 A19 21A00-0160-A24 WTF/A-L 16 12/4470 WTF/L 0160 A 12/4470 WTF-L-0160-A-12/4470 WTF/L0160A-12/4470
GHF/A/P 025 21A02 0250 A 19 21A02 0250 A 24 21A02 0250 A19 21A02-0250-A24 WTF/A-P 25 12/4470 WTF/P 0250 A 12/4470 WTF-P-0250-A-12/4470 WTF/P0250A-12/4470 S1A 25 33,8 6 S1A 25 33.8 6 WEH100250 WEH100250-T05N
S1AV 25 29,8 3,7 S1AV 25 29.8 3.7 GHF/A/L 025 WEL500250 WEL500250-T05V 21A00 0250 E 19 21A00 0250 E 24 21A00-0250-E24 WTF/A-L 25 12/9775 WTF/L 0250 A 12/9775 WTF-L-0250-A-12/9775 WTF/L0250A-12/9775
S1AV 35 39,8 3,7 S1AV 35 39.8 3.7 GHF/A/L 035 WEL500350 WEL500350-T05V 21A00 0350 E 19 21A00 0350 E 24 21A00-0350-E24 WTF/A-L 35 12/9775 WTF/L 0350 A 12/9775 WTF-L-0350-A-12/9775 WTF/L0350A-12/9775
S1AV 15 21,8 5 S1AV 15 21.8 5 GHF/A 015 WEM300150 WEM300150-T05V 21A01 0150 E 19 21A01 0150 E 24 21A01-0150-E24 WTF 0150 A 12/9775 WTF-0150-A-12/9775 WTF/A 15 12/9775 WTF0150A-12/9775
S1A 25 31,8 5 S1A 25 31.8 5 GHF/A 025 WEM300250 WEM300250-T05N 21A01 0250 A 19 21A01 0250 A 24 21A01 0250 A19 21A01-0250-A24 WTF 0250 A 12/4470 WTF-0250-A-12/4470 WTF/A 25 12/4470 WTF0250A-12/4470
S1AV 32 38,8 5 S1AV 32 38.8 5 GHF/A 032 WEM300320 WEM300320-T05V 21A01 0320 E 19 21A01 0320 E 24 21A01-0320-E24 WTF 0320 A 12/9775 WTF-0320-A-12/9775 WTF/A 32 12/9775 WTF0320A-12/9775
S1A 35 41,8 5 S1A 35 41.8 5 GHF/A 035 WEM300350 WEM300350-T05N 21A01 0350 A 19 21A01 0350 A 24 21A01 0350 A19 21A01-0350-A24 WTF 0350 A 12/4470 WTF-0350-A-12/4470 WTF/A 35 12/4470 WTF0350A-12/4470
S1A 15 21,8 5 S1A 15 21.8 5 GHF/A 015 WEM300150 WEM300150-T05N 21A01 0150 A 19 21A01 0150 A 24 21A01 0150 A19 21A01-0150-A24 WTF 0150 A 12/4470 WTF-0150-A-12/4470 WTF/A 15 12/4470 WTF0150A-12/4470
S1AV 22 28,8 5 S1AV 22 28.8 5 GHF/A 022 WEM300220 WEM300220-T05V 21A01 0220 E 19 21A01 0220 E 24 21A01-0220-E24 WTF 0220 A 12/9775 WTF-0220-A-12/9775 WTF/A 22 12/9775 WTF0220A-12/9775
S1AV 18 22,8 3,7 S1AV 18 22.8 3.7 GHF/A/L 018 WEL500180 WEL500180-T05V 21A00 0180 E 19 21A00 0180 E 24 21A00-0180-E24 WTF/A-L 18 12/9775 WTF/L 0180 A 12/9775 WTF-L-0180-A-12/9775 WTF/L0180A-12/9775
S1A 25 29,8 3,7 S1A 25 29.8 3.7 GHF/A/L 025 WEL500250 WEL500250-T05N 21A00 0250 A 19 21A00 0250 A 24 21A00 0250 A19 21A00-0250-A24 WTF/A-L 25 12/4470 WTF/L 0250 A 12/4470 WTF-L-0250-A-12/4470 WTF/L0250A-12/4470
S1AV 28 34,8 5 S1AV 28 34.8 5 GHF/A 028 WEM300280 WEM300280-T05V 21A01 0280 E 19 21A01 0280 E 24 21A01-0280-E24 WTF 0280 A 12/9775 WTF-0280-A-12/9775 WTF/A 28 12/9775 WTF0280A-12/9775
S1AV 36 42,8 5 S1AV 36 42.8 5 GHF/A 036 WEM300360 WEM300360-T05V 21A01 0360 E 19 21A01 0360 E 24 21A01-0360-E24 WTF 0360 A 12/9775 WTF-0360-A-12/9775 WTF/A 36 12/9775 WTF0360A-12/9775
S1A 22 26,8 3,7 S1A 22 26.8 3.7 GHF/A/L 022 WEL500220 WEL500220-T05N 21A00 0220 A 19 21A00 0220 A 24 21A00 0220 A19 21A00-0220-A24 WTF/A-L 22 12/4470 WTF/L 0220 A 12/4470 WTF-L-0220-A-12/4470 WTF/L0220A-12/4470
S1A 16 22,8 5 S1A 16 22.8 5 GHF/A 016 WEM300160 WEM300160-T05N 21A01 0160 A 19 21A01 0160 A 24 21A01 0160 A19 21A01-0160-A24 WTF 0160 A 12/4470 WTF-0160-A-12/4470 WTF/A 16 12/4470 WTF0160A-12/4470
S1A 36 42,8 5 S1A 36 42.8 5 GHF/A 036 WEM300360 WEM300360-T05N 21A01 0360 A 19 21A01 0360 A 24 21A01 0360 A19 21A01-0360-A24 WTF 0360 A 12/4470 WTF-0360-A-12/4470 WTF/A 36 12/4470 WTF0360A-12/4470
S1AV 16 22,8 5 S1AV 16 22.8 5 GHF/A 016 WEM300160 WEM300160-T05V 21A01 0160 E 19 21A01 0160 E 24 21A01-0160-E24 WTF 0160 A 12/9775 WTF-0160-A-12/9775 WTF/A 16 12/9775 WTF0160A-12/9775
S1A 14 18,8 3,7 S1A 14 18.8 3.7 GHF/A/L 014 WEL500140 WEL500140-T05N 21A00 0140 A 19 21A00 0140 A 24 21A00 0140 A19 21A00-0140-A24 WTF/A-L 14 12/4470 WTF/L 0140 A 12/4470 WTF-L-0140-A-12/4470 WTF/L0140A-12/4470
GHF/A/P 028 21A02 0280 A 19 21A02 0280 A 24 21A02 0280 A19 21A02-0280-A24 WTF/A-P 28 12/4470 WTF/P 0280 A 12/4470 WTF-P-0280-A-12/4470 WTF/P0280A-12/4470 S1A 28 36,8 6 S1A 28 36.8 6 WEH100280 WEH100280-T05N
GHF/A/P 025 21A02 0250 E 19 21A02 0250 E 24 21A02-0250-E24 WTF/A-P 25 12/9775 WTF/P 0250 A 12/9775 WTF-P-0250-A-12/9775 WTF/P0250A-12/9775 S1AV 25 33,8 6 S1AV 25 33.8 6 WEH100250 WEH100250-T05V
Search by code
| Description | Ø d | Ø D | Ø I | L | ||
|---|---|---|---|---|---|---|
| RS 10 PA BN | 10,00 | 14,80 | 11,50 | 3,70 | PTFE blue/NBR | |
| RS 10 PA VT | 10,00 | 14,80 | 11,50 | 3,70 | PTFE blue/FKM | |
| RS/L 14 PA BN | 14,00 | 18,80 | 15,50 | 3,70 | PTFE blue/NBR | |
| RS/L 14 PA VT | 14,00 | 18,80 | 15,50 | 3,70 | PTFE blue/FKM | |
| RS 14 PA BN | 14,00 | 20,80 | 15,50 | 5,00 | PTFE blue/NBR | |
| RS 14 PA VT | 14,00 | 20,80 | 15,50 | 5,00 | PTFE blue/FKM | |
| RS 15 PA BN | 15,00 | 21,80 | 16,50 | 5,00 | PTFE blue/NBR | |
| RS 15 PA VT | 15,00 | 21,80 | 16,50 | 5,00 | PTFE blue/FKM | |
| RS/L 16 PA BN | 16,00 | 20,80 | 17,50 | 3,70 | PTFE blue/NBR | |
| RS/L 16 PA VT | 16,00 | 20,80 | 17,50 | 3,70 | PTFE blue/FKM | |
| RS 16 PA BN | 16,00 | 22,80 | 17,50 | 5,00 | PTFE blue/NBR | |
| RS 16 PA VT | 16,00 | 22,80 | 17,50 | 5,00 | PTFE blue/FKM | |
| RS/L 18 PA BN | 18,00 | 22,80 | 19,50 | 3,70 | PTFE blue/NBR | |
| RS/L 18 PA VT | 18,00 | 22,80 | 19,50 | 3,70 | PTFE blue/FKM | |
| RS 18 PA BN | 18,00 | 24,80 | 19,50 | 5,00 | PTFE blue/NBR | |
| RS 18 PA VT | 18,00 | 24,80 | 19,50 | 5,00 | PTFE blue/FKM | |
| RS 20 PA BN | 20,00 | 26,80 | 21,50 | 5,00 | PTFE blue/NBR | |
| RS 20 PA VT | 20,00 | 26,80 | 21,50 | 5,00 | PTFE blue/FKM | |
| RS/L 22 PA BN | 22,00 | 26,80 | 23,50 | 3,70 | PTFE blue/NBR | |
| RS/L 22 PA VT | 22,00 | 26,80 | 23,50 | 3,70 | PTFE blue/FKM | |
| RS 22 PA BN | 22,00 | 28,80 | 23,50 | 5,00 | PTFE blue/NBR | |
| RS 22 PA VT | 22,00 | 28,80 | 23,50 | 5,00 | PTFE blue/FKM | |
| RS/L 25 PA BN | 25,00 | 29,80 | 26,50 | 3,70 | PTFE blue/NBR | |
| RS/L 25 PA VT | 25,00 | 29,80 | 26,50 | 3,70 | PTFE blue/FKM | |
| RS 25 PA BN | 25,00 | 31,80 | 26,50 | 5,00 | PTFE blue/NBR | |
| RS 25 PA VT | 25,00 | 31,80 | 26,50 | 5,00 | PTFE blue/FKM | |
| RS/P 25 PA BN | 25,00 | 33,80 | 26,50 | 6,00 | PTFE blue/NBR | |
| RS/P 25 PA VT | 25,00 | 33,80 | 26,50 | 6,00 | PTFE blue/FKM | |
| RS 28 PA BN | 28,00 | 34,80 | 29,50 | 5,00 | PTFE blue/NBR | |
| RS 28 PA VT | 28,00 | 34,80 | 29,50 | 5,00 | PTFE blue/FKM | |
| RS/P 28 PA BN | 28,00 | 36,80 | 29,50 | 6,00 | PTFE blue/NBR | |
| RS/P 28 PA VT | 28,00 | 36,80 | 29,50 | 6,00 | PTFE blue/FKM | |
| RS/L 30 PA BN | 30,00 | 34,80 | 31,50 | 3,70 | PTFE blue/NBR | |
| RS/L 30 PA VT | 30,00 | 34,80 | 31,50 | 3,70 | PTFE blue/FKM | |
| RS 30 PA BN | 30,00 | 36,80 | 31,50 | 5,00 | PTFE blue/NBR | |
| RS 30 PA VT | 30,00 | 36,80 | 31,50 | 5,00 | PTFE blue/FKM | |
| RS 32 PA BN | 32,00 | 38,80 | 33,50 | 5,00 | PTFE blue/NBR | |
| RS 32 PA VT | 32,00 | 38,80 | 33,50 | 5,00 | PTFE blue/FKM | |
| RS 34 PA BN | 34,00 | 40,80 | 35,50 | 5,00 | PTFE blue/NBR | |
| RS 34 PA VT | 34,00 | 40,80 | 35,50 | 5,00 | PTFE blue/FKM | |
| RS/L 35 PA BN | 35,00 | 39,80 | 36,50 | 3,70 | PTFE blue/NBR | |
| RS/L 35 PA VT | 35,00 | 39,80 | 36,50 | 3,70 | PTFE blue/FKM | |
| RS 35 PA BN | 35,00 | 41,80 | 36,50 | 5,00 | PTFE blue/NBR | |
| RS 35 PA VT | 35,00 | 41,80 | 36,50 | 5,00 | PTFE blue/FKM | |
| RS 36 PA BN | 36,00 | 42,80 | 37,50 | 5,00 | PTFE blue/NBR | |
| RS 36 PA VT | 36,00 | 42,80 | 37,50 | 5,00 | PTFE blue/FKM | |
| RS/L 40 PA BN | 40,00 | 44,80 | 41,50 | 3,70 | PTFE blue/NBR | |
| RS/L 40 PA VT | 40,00 | 44,80 | 41,50 | 3,70 | PTFE blue/FKM | |
| RS 40 PA BN | 40,00 | 46,80 | 41,50 | 5,00 | PTFE blue/NBR | |
| RS 40 PA VT | 40,00 | 46,80 | 41,50 | 5,00 | PTFE blue/FKM |
