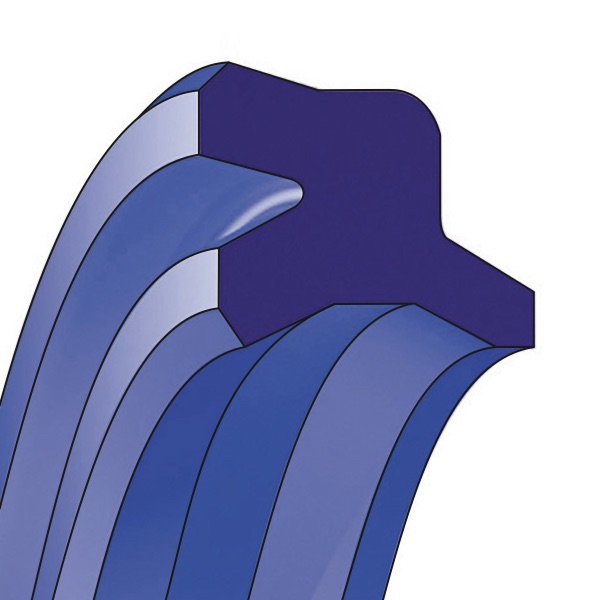

CLDouble-acting scraper
Double-acting scraper with double-lip profile. Main characteristics are: high wiper effect and good adaptability to small imperfections of the rod. Particularly suitable for heavy duty applications. Its double action, combined with seals that give back pumping performance, allow the scraped fluid recovery inside during the return stroke, increasing the efficiency of the sealing system. Standard material: polyurethane.
Seal capabilities
- Temperature: from -40 to 110 °C
- Max. speed: 0,8 m/s
Applications
This product is interchangeable with:
WD22 - DA22 - GHW - UWR - RSW - P9 - PU11 - AY - 839 - AD48 - AD53 - SAB - WED - K27 - A11-A - MHRW - LBI - LBH - ASR - AY - DHS
ASR 5612 ASR-5612 ASR5612
GHW 055078 GHW 14 WD22 10140 WD2210140 WD2210140-Z201
K27-012/1 K27-012/1 PU
K103-016 K103-016 NBR
WED 0140 0200 040 C0 WED-0140-0200-040-C0 WED01400200040C0 WD22 00140 WD2200140 WD2200140-Z201 K27-014/1 K27-014/1 PU
ASR 44516 ASR-44516 ASR44516
K27-013 K27-013 NBR
K27-010 K27-010 PU
K27-015/1 K27-015/1 PU
UWR 062087 UWR062087 K27-016 K27-016 NBR
ASR 5616 ASR-5616 ASR5616
ASR 44514 ASR-44514 ASR44514
ASR 3458 ASR-3458 ASR3458
WED 0100 0160 040 C0 WED-0100-0160-040-C0 WED01000160040C0
WED 0160 0220 040 C0 WED-0160-0220-040-C0 WED01600220040C0 WD22 00160 WD2200160 WD2200160-Z201
ASR 5610 ASR-5610 ASR5610
GHW 039063/1 GHW 10/1
ASR 5712 ASR-5712 ASR5712
ASR 44516 ASR-44516 ASR44516
WED 0080 0130 035 C0 WED-0080-0130-035-C0 WED00800130035C0 WD22 00080 WD2200080 WD2200080-Z201
ASR 5615 ASR-5615 ASR5615
ASR 44510 ASR-44510 ASR44510
GHW 039063 GHW 10
K27-010/1 K27-010/1 PU
ASR 5614 ASR-5614 ASR5614
K27-008 K27-008 NBR
K27-014 K27-014 NBR
WED 0060 0110 035 C0 WED-0060-0110-035-C0 WED00600110035C0
K27-016 K27-016 PU
ASR 5712 ASR-5712 ASR5712
ASR 44512 ASR-44512 ASR44512
K27-012/1 K27-012/1 NBR
GHW 047070 GHW 12 WD22 10120 WD2210120 WD2210120-Z201 UWR 047070 UWR047070
K27-015 K27-015 NBR
K27-016/2 K27-016/2 PU
K27-015/1 K27-015/1 NBR
K27-012 K27-012 NBR
ASR 5616 ASR-5616 ASR5616
K27-015 K27-015 PU
ASR 44514 ASR-44514 ASR44514
ASR 3458 ASR-3458 ASR3458
ASR 44510 ASR-44510 ASR44510
ASR 44512 ASR-44512 ASR44512
K103-014 K103-014 NBR
K27-016/1 K27-016/1 NBR
ASR 5612 ASR-5612 ASR5612
ASR 5614 ASR-5614 ASR5614
WED 0120 0180 040 C0 WED-0120-0180-040-C0 WED01200180040C0 WD22 00120 WD2200120 WD2200120-Z201
ASR 5615 ASR-5615 ASR5615
ASR 5610 ASR-5610 ASR5610
Search by code
| Description | Ø d | Ø D | Ø I | L | L1 | ||
|---|---|---|---|---|---|---|---|
| CL 6x8,5x11x3,5/4,8 PU | 6,00 | 11,00 | 8,50 | 3,50 | 4,80 | PU | |
| CL 8x10,5x13x3,5/4,8 PU | 8,00 | 13,00 | 10,50 | 3,50 | 4,80 | PU | |
| CL 8x11x14x4/5,5 BN | 8,00 | 14,00 | 11,00 | 4,00 | 5,50 | NBR 90Sh.A - Nitrile | |
| CL 8x11x14x4/5,5 PU | 8,00 | 14,00 | 11,00 | 4,00 | 5,50 | PU | |
| CL 8x11,2x14x4,3/5,5 BN | 8,00 | 14,00 | 11,20 | 4,30 | 5,50 | NBR 90Sh.A - Nitrile | |
| CL 10x12x15x5/6 PU | 10,00 | 15,00 | 12,00 | 5,00 | 6,00 | PU | |
| CL 10x13x16x4/7 PU | 10,00 | 16,00 | 13,00 | 4,00 | 7,00 | PU | |
| CL 10x12,7x16,1x3,9/4,8 PU | 10,00 | 16,10 | 12,70 | 3,90 | 4,80 | PU | |
| CL 10x11,3x16,6x3,6/4,8 PU | 10,00 | 16,60 | 11,30 | 3,60 | 4,80 | PU | |
| CL 10x11,3x16,6x5,3/7 PU | 10,00 | 16,60 | 11,30 | 5,30 | 7,00 | PU | |
| CL 10x14x18x4,5/6 BN | 10,00 | 18,00 | 14,00 | 4,50 | 6,00 | NBR 90Sh.A - Nitrile | |
| CL 10x14x18x4,5/6 PU | 10,00 | 18,00 | 14,00 | 4,50 | 6,00 | PU | |
| CL 10x14x20x5/6,5 BN | 10,00 | 20,00 | 14,00 | 5,00 | 6,50 | NBR 90Sh.A - Nitrile | |
| CL 10x14x20x5/6,5 PU | 10,00 | 20,00 | 14,00 | 5,00 | 6,50 | PU | |
| CL 12x14,6x18x3,6/4,8 BN | 12,00 | 18,00 | 14,60 | 3,60 | 4,80 | NBR 90Sh.A - Nitrile | |
| CL 12x14,5x18x4/4,7 PU | 12,00 | 18,00 | 14,50 | 4,00 | 4,70 | PU | |
| CL 12x15x18,6x3,8/5 PU | 12,00 | 18,60 | 15,00 | 3,80 | 5,00 | PU | |
| CL 12x16x20x4,5/6 BN | 12,00 | 20,00 | 16,00 | 4,50 | 6,00 | NBR 90Sh.A - Nitrile | |
| CL 12x16x20x4,5/6 PU | 12,00 | 20,00 | 16,00 | 4,50 | 6,00 | PU | |
| CL 12x16x22x5/6,5 BN | 12,00 | 22,00 | 16,00 | 5,00 | 6,50 | NBR 90Sh.A - Nitrile | |
| CL 12x16x22x5/6,5 PU | 12,00 | 22,00 | 16,00 | 5,00 | 6,50 | PU | |
| CL 12x16x22x6/7,5 BN | 12,00 | 22,00 | 16,00 | 6,00 | 7,50 | NBR 90Sh.A - Nitrile | |
| CL 12x16x22x6/7,5 PU | 12,00 | 22,00 | 16,00 | 6,00 | 7,50 | PU | |
| CL 12,76x15,62x20,42x5,07/6 BN | 12,76 | 20,42 | 15,62 | 5,07 | 6,00 | NBR 90Sh.A - Nitrile | |
| CL 12,76x15,62x20,42x5,07/6 PU | 12,76 | 20,42 | 15,62 | 5,07 | 6,00 | PU | |
| CL 13x16x20x5,8/7,3 BN | 13,00 | 20,00 | 16,00 | 5,80 | 7,30 | NBR 90Sh.A - Nitrile | |
| CL 14x16,5x20x3,6/4,8 BN | 14,00 | 20,00 | 16,50 | 3,60 | 4,80 | NBR 90Sh.A - Nitrile | |
| CL 14x16,5x20x4/6 PU | 14,00 | 20,00 | 16,50 | 4,00 | 6,00 | PU | |
| CL 14x17x20,6x3,8/5 PU | 14,00 | 20,60 | 17,00 | 3,80 | 5,00 | PU | |
| CL 14x18x22x4,5/6 BN | 14,00 | 22,00 | 18,00 | 4,50 | 6,00 | NBR 90Sh.A - Nitrile | |
| CL 14x18x22x4,5/6 PU | 14,00 | 22,00 | 18,00 | 4,50 | 6,00 | PU | |
| CL 14x18,3x22x5/6 BN | 14,00 | 22,00 | 18,30 | 5,00 | 6,00 | NBR 90Sh.A - Nitrile | |
| CL 14x18x24x5/6,5 BN | 14,00 | 24,00 | 18,00 | 5,00 | 6,50 | NBR 90Sh.A - Nitrile | |
| CL 14x18x24x5/6,5 PU | 14,00 | 24,00 | 18,00 | 5,00 | 6,50 | PU | |
| CL 15x19x25x5/6,5 BN | 15,00 | 25,00 | 19,00 | 5,00 | 6,50 | NBR 90Sh.A - Nitrile | |
| CL 15x19x25x5/6,5 PU | 15,00 | 25,00 | 19,00 | 5,00 | 6,50 | PU | |
| CL 15,87x19,1x23,8x5,1/6 BN | 15,87 | 23,80 | 19,10 | 5,10 | 6,00 | NBR 90Sh.A - Nitrile | |
| CL 15,87x19,1x23,8x5,1/6 PU | 15,87 | 23,80 | 19,10 | 5,10 | 6,00 | PU | |
| CL 15,93x18,79x23,59x5,07/6 BN | 15,93 | 23,59 | 18,79 | 5,07 | 6,00 | NBR 90Sh.A - Nitrile | |
| CL 15,93x18,79x23,59x5,07/6 PU | 15,93 | 23,59 | 18,79 | 5,07 | 6,00 | PU | |
| CL 16x19x22x3,8/5,5 BN | 16,00 | 22,00 | 19,00 | 3,80 | 5,50 | NBR 90Sh.A - Nitrile | |
| CL 16x19x22x3,8/5,5 PU | 16,00 | 22,00 | 19,00 | 3,80 | 5,50 | PU | |
| CL 16x18,5x22x3,9/5 PU | 16,00 | 22,00 | 18,50 | 3,90 | 5,00 | PU | |
| CL 16x18,5x22x4/4,7 PU | 16,00 | 22,00 | 18,50 | 4,00 | 4,70 | PU | |
| CL 16x19x24x4,3/6 BN | 16,00 | 24,00 | 19,00 | 4,30 | 6,00 | NBR 90Sh.A - Nitrile | |
| CL 16x20x24x4,5/6 BN | 16,00 | 24,00 | 20,00 | 4,50 | 6,00 | NBR 90Sh.A - Nitrile | |
| CL 16x20x24x4,5/6 PU | 16,00 | 24,00 | 20,00 | 4,50 | 6,00 | PU | |
| CL 16x20,3x24x5/6 BN | 16,00 | 24,00 | 20,30 | 5,00 | 6,00 | NBR 90Sh.A - Nitrile | |
| CL 16x20x26x5/6,5 BN | 16,00 | 26,00 | 20,00 | 5,00 | 6,50 | NBR 90Sh.A - Nitrile | |
| CL 16x20x26x5/6,5 PU | 16,00 | 26,00 | 20,00 | 5,00 | 6,50 | PU |
