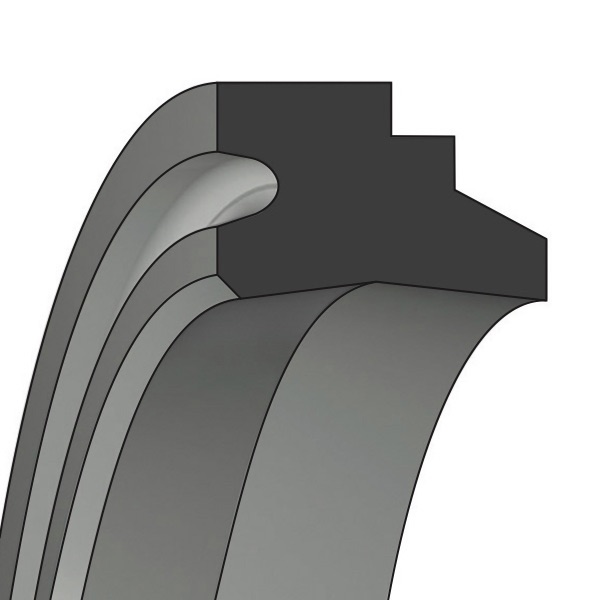

CFDouble-acting scraper
Double-acting scraper with double-lip profile. Main characteristics are: high wiper effect and good adaptability to small imperfections of the rod. Particularly suitable for heavy duty applications. Its double action, combined with seals that give back pumping performance, allow the scraped fluid recovery inside during the return stroke, increasing the efficiency of the sealing system. Standard material: nitrile.
Seal capabilities
- Temperature: from -30 to 110 °C
- Max. speed: 0,8 m/s
Applications
This product is interchangeable with:
WD17 - DA17 - GPW - DSR-U - P8 - EL - AD51 - SAD - 21D - K10
21D02 0180 PU 21D02-0180-PU GPW 18 SAD 18 SAD18 WD17 00180
21D02 0280 N90 21D02-0280-N90 AD51 28 36 6 NB9055 AD51 28,0 36,0 6,0 NB9055 AD51 28.0 36.0 6.0 NB9055 GPW 28 K10-028 K10-028 NBR SAD 28 SAD28 WD17 00280 WD17 00280 N9 WD1700280-N9 WD1700280N9
21D02 0450 N90 21D02-0450-N90 AD51 45 53 6 NB9055 AD51 45,0 53,0 6,0 NB9055 AD51 45.0 53.0 6.0 NB9055 GPW 45 K10-045 K10-045 NBR SAD 45 SAD45 WD17 00450 WD17 00450 N9 WD1700450-N9 WD1700450N9
21D02 0360 N90 21D02-0360-N90 AD51 36 44 6 NB9055 AD51 36,0 44,0 6,0 NB9055 AD51 36.0 44.0 6.0 NB9055 GPW 36 K10-036 K10-036 NBR SAD 36 SAD36 WD17 00360 WD17 00360 N9 WD1700360-N9 WD1700360N9
21D02 0350 PU 21D02-0350-PU GPW 35 SAD 35 SAD35 WD17 00350
21D02 0280 PU 21D02-0280-PU GPW 28 SAD 28 SAD28 WD17 00280
21D02 0350 N90 21D02-0350-N90 AD51 35 43 6 NB9055 AD51 35,0 43,0 6,0 NB9055 AD51 35.0 43.0 6.0 NB9055 GPW 35 K10-035 K10-035 NBR SAD 35 SAD35 WD17 00350 WD17 00350 N9 WD1700350-N9 WD1700350N9
21D02 0100 PU 21D02-0100-PU GPW 10 SAD 10 SAD10 WD17 00100
21D02 0180 N90 21D02-0180-N90 AD51 18 26 6 NB9055 AD51 18,0 26,0 6,0 NB9055 AD51 18.0 26.0 6.0 NB9055 GPW 18 K10-018 K10-018 NBR SAD 18 SAD18 WD17 00180 WD17 00180 N9 WD1700180-N9 WD1700180N9
21D02 0450 PU 21D02-0450-PU GPW 45 SAD 45 SAD45 WD17 00450
21D02 0520 N90 21D02-0520-N90 K10-052 K10-052 NBR SAD 52 SAD52 WD17 00520 WD17 00520 N9 WD1700520-N9 WD1700520N9
21D02 0360 PU 21D02-0360-PU GPW 36 SAD 36 SAD36 WD17 00360
21D02 0120 N90 21D02-0120-N90 AD51 12 20 6 NB9055 AD51 12,0 20,0 6,0 NB9055 AD51 12.0 20.0 6.0 NB9055 GPW 12 K10-012 K10-012 NBR SAD 12 SAD12 WD17 00120 WD17 00120 N9 WD1700120-N9 WD1700120N9
21D02 0560 N90 21D02-0560-N90 AD51 56 64 6 NB9055 AD51 56,0 64,0 6,0 NB9055 AD51 56.0 64.0 6.0 NB9055 GPW 56 K10-056 K10-056 NBR SAD 56 SAD56 WD17 00560 WD17 00560 N9 WD1700560-N9 WD1700560N9
21D02 0250 N90 21D02-0250-N90 AD51 25 33 6 NB9055 AD51 25,0 33,0 6,0 NB9055 AD51 25.0 33.0 6.0 NB9055 GPW 25 K10-025 K10-025 NBR SAD 25 SAD25 WD17 00250 WD17 00250 N9 WD1700250-N9 WD1700250N9
21D02 0480 N90 21D02-0480-N90 K10-048 K10-048 NBR SAD 48 SAD48 WD17 00480 WD17 00480 N9 WD1700480-N9 WD1700480N9
21D02 0600 N90 21D02-0600-N90 AD51 60 68 6 NB9055 AD51 60,0 68,0 6,0 NB9055 AD51 60.0 68.0 6.0 NB9055 GPW 60 K10-060 K10-060 NBR SAD 60 SAD60 WD17 00600 WD17 00600 N9 WD1700600-N9 WD1700600N9
21D02 0550 PU 21D02-0550-PU GPW 55 SAD 55 SAD55 WD17 00550
21D02 0420 PU 21D02-0420-PU GPW 42 SAD 42 SAD42 WD17 00420
21D02 0560 PU 21D02-0560-PU GPW 56 SAD 56 SAD56 WD17 00560
21D02 0380 N90 21D02-0380-N90 GPW 38 K10-038 K10-038 NBR SAD 38 SAD38 WD17 00380 WD17 00380 N9 WD1700380-N9 WD1700380N9
21D02 0250 PU 21D02-0250-PU GPW 25 SAD 25 SAD25 WD17 00250
21D02 0120 PU 21D02-0120-PU GPW 12 SAD 12 SAD12 WD17 00120
21D02 0380 PU 21D02-0380-PU GPW 38 SAD 38 SAD38 WD17 00380
21D02 0550 N90 21D02-0550-N90 GPW 55 K10-055 K10-055 NBR SAD 55 SAD55 WD17 00550 WD17 00550 N9 WD1700550-N9 WD1700550N9
21D02 0600 PU 21D02-0600-PU GPW 60 SAD 60 SAD60 WD17 00600
21D02 0650 PU 21D02-0650-PU GPW 65 SAD 65 SAD65 WD17 00650
21D02 0150 N90 21D02-0150-N90 AD51 15 23 6 NB9055 AD51 15,0 23,0 6,0 NB9055 AD51 15.0 23.0 6.0 NB9055 GPW 15 K10-015 K10-015 NBR SAD 15 SAD15 WD17 00150 WD17 00150 N9 WD1700150-N9 WD1700150N9
21D02 0300 PU 21D02-0300-PU GPW 30 SAD 30 SAD30 WD17 00300
21D02 0400 N90 21D02-0400-N90 AD51 40 48 6 NB9055 AD51 40,0 48,0 6,0 NB9055 AD51 40.0 48.0 6.0 NB9055 GPW 40 K10-040/1 K10-040/1 NBR SAD 40 SAD40 WD17 00400 WD17 00400 N9 WD1700400-N9 WD1700400N9
21D02 0320 N90 21D02-0320-N90 AD51 32 40 6 NB9055 AD51 32,0 40,0 6,0 NB9055 AD51 32.0 40.0 6.0 NB9055 GPW 32 K10-032 K10-032 NBR SAD 32 SAD32 WD17 00320 WD17 00320 N9 WD1700320-N9 WD1700320N9
21D02 0220 PU 21D02-0220-PU GPW 22 SAD 22 SAD22 WD17 00220
21D02 0650 N90 21D02-0650-N90 AD51 65 73 6 NB9055 AD51 65,0 73,0 6,0 NB9055 AD51 65.0 73.0 6.0 NB9055 GPW 65 K10-065 K10-065 NBR SAD 65 SAD65 WD17 00650 WD17 00650 N9 WD1700650-N9 WD1700650N9
21D02 0300 N90 21D02-0300-N90 AD51 30 38 6 NB9055 AD51 30,0 38,0 6,0 NB9055 AD51 30.0 38.0 6.0 NB9055 GPW 30 K10-030 K10-030 NBR SAD 30 SAD30 WD17 00300 WD17 00300 N9 WD1700300-N9 WD1700300N9
21D02 0100 N90 21D02-0100-N90 GPW 10 K10-010 K10-010 NBR SAD 10 SAD10 WD17 00100 WD17 00100 N9 WD1700100-N9 WD1700100N9
21D02 0150 PU 21D02-0150-PU GPW 15 SAD 15 SAD15 WD17 00150
21D02 0400 PU 21D02-0400-PU GPW 40 SAD 40 SAD40 WD17 00400
21D02 0140 N90 21D02-0140-N90 AD51 14 22 6 NB9055 AD51 14,0 22,0 6,0 NB9055 AD51 14.0 22.0 6.0 NB9055 GPW 14 K10-014 K10-014 NBR SAD 14 SAD14 WD17 00140 WD17 00140 N9 WD1700140-N9 WD1700140N9
21D02 0140 PU 21D02-0140-PU GPW 14 SAD 14 SAD14 WD17 00140
21D02 0320 PU 21D02-0320-PU GPW 32 SAD 32 SAD32 WD17 00320
21D02 0220 N90 21D02-0220-N90 AD51 22 30 6 NB9055 AD51 22,0 30,0 6,0 NB9055 AD51 22.0 30.0 6.0 NB9055 GPW 22 K10-022 K10-022 NBR SAD 22 SAD22 WD17 00220 WD17 00220 N9 WD1700220-N9 WD1700220N9
21D02 0160 PU 21D02-0160-PU GPW 16 SAD 16 SAD16 WD17 00160
21D02 0200 PU 21D02-0200-PU GPW 20 SAD 20 SAD20 WD17 00200
21D02 0500 PU 21D02-0500-PU GPW 50 SAD 50 SAD50 WD17 00500
21D02 0420 N90 21D02-0420-N90 GPW 42 K10-042 K10-042 NBR SAD 42 SAD42 WD17 00420 WD17 00420 N9 WD1700420-N9 WD1700420N9
21D02 0630 PU 21D02-0630-PU GPW 63 SAD 63 SAD63 WD17 00630
21D02 0160 N90 21D02-0160-N90 AD51 16 24 6 NB9055 AD51 16,0 24,0 6,0 NB9055 AD51 16.0 24.0 6.0 NB9055 GPW 16 K10-016 K10-016 NBR SAD 16 SAD16 WD17 00160 WD17 00160 N9 WD1700160-N9 WD1700160N9
21D02 0500 N90 21D02-0500-N90 AD51 50 58 6 NB9055 AD51 50,0 58,0 6,0 NB9055 AD51 50.0 58.0 6.0 NB9055 GPW 50 K10-050 K10-050 NBR SAD 50 SAD50 WD17 00500 WD17 00500 N9 WD1700500-N9 WD1700500N9
21D02 0630 N90 21D02-0630-N90 AD51 63 71 6 NB9055 AD51 63,0 71,0 6,0 NB9055 AD51 63.0 71.0 6.0 NB9055 GPW 63 K10-063 K10-063 NBR SAD 63 SAD63 WD17 00630 WD17 00630 N9 WD1700630-N9 WD1700630N9
21D02 0200 N90 21D02-0200-N90 AD51 20 28 6 NB9055 AD51 20,0 28,0 6,0 NB9055 AD51 20.0 28.0 6.0 NB9055 GPW 20 K10-020 K10-020 NBR SAD 20 SAD20 WD17 00200 WD17 00200 N9 WD1700200-N9 WD1700200N9
Search by code
| Description | Ø d | Ø D | Ø I | L | L1 | ||
|---|---|---|---|---|---|---|---|
| CF 10 BN | 10,00 | 18,00 | 13,50 | 6,00 | 8,00 | NBR 90Sh.A - Nitrile | |
| CF 10 PU | 10,00 | 18,00 | 13,50 | 6,00 | 8,00 | PU | |
| CF 12 BN | 12,00 | 20,00 | 15,50 | 6,00 | 8,00 | NBR 90Sh.A - Nitrile | |
| CF 12 PU | 12,00 | 20,00 | 15,50 | 6,00 | 8,00 | PU | |
| CF 14 BN | 14,00 | 22,00 | 17,50 | 6,00 | 8,00 | NBR 90Sh.A - Nitrile | |
| CF 14 PU | 14,00 | 22,00 | 17,50 | 6,00 | 8,00 | PU | |
| CF 15 BN | 15,00 | 23,00 | 18,50 | 6,00 | 8,00 | NBR 90Sh.A - Nitrile | |
| CF 15 PU | 15,00 | 23,00 | 18,50 | 6,00 | 8,00 | PU | |
| CF 16 BN | 16,00 | 24,00 | 19,50 | 6,00 | 8,00 | NBR 90Sh.A - Nitrile | |
| CF 16 PU | 16,00 | 24,00 | 19,50 | 6,00 | 8,00 | PU | |
| CF 18 BN | 18,00 | 26,00 | 21,50 | 6,00 | 8,00 | NBR 90Sh.A - Nitrile | |
| CF 18 PU | 18,00 | 26,00 | 21,50 | 6,00 | 8,00 | PU | |
| CF 20 BN | 20,00 | 28,00 | 23,50 | 6,00 | 8,00 | NBR 90Sh.A - Nitrile | |
| CF 20 PU | 20,00 | 28,00 | 23,50 | 6,00 | 8,00 | PU | |
| CF 22 BN | 22,00 | 30,00 | 25,50 | 6,00 | 8,00 | NBR 90Sh.A - Nitrile | |
| CF 22 PU | 22,00 | 30,00 | 25,50 | 6,00 | 8,00 | PU | |
| CF 25 BN | 25,00 | 33,00 | 28,50 | 6,00 | 8,00 | NBR 90Sh.A - Nitrile | |
| CF 25 PU | 25,00 | 33,00 | 28,50 | 6,00 | 8,00 | PU | |
| CF 28 BN | 28,00 | 36,00 | 31,50 | 6,00 | 8,00 | NBR 90Sh.A - Nitrile | |
| CF 28 PU | 28,00 | 36,00 | 31,50 | 6,00 | 8,00 | PU | |
| CF 30 BN | 30,00 | 38,00 | 33,50 | 6,00 | 8,00 | NBR 90Sh.A - Nitrile | |
| CF 30 PU | 30,00 | 38,00 | 33,50 | 6,00 | 8,00 | PU | |
| CF 32 BN | 32,00 | 40,00 | 35,50 | 6,00 | 8,00 | NBR 90Sh.A - Nitrile | |
| CF 32 PU | 32,00 | 40,00 | 35,50 | 6,00 | 8,00 | PU | |
| CF 35 BN | 35,00 | 43,00 | 38,50 | 6,00 | 8,00 | NBR 90Sh.A - Nitrile | |
| CF 35 PU | 35,00 | 43,00 | 38,50 | 6,00 | 8,00 | PU | |
| CF 36 BN | 36,00 | 44,00 | 39,50 | 6,00 | 8,00 | NBR 90Sh.A - Nitrile | |
| CF 36 PU | 36,00 | 44,00 | 39,50 | 6,00 | 8,00 | PU | |
| CF 38 BN | 38,00 | 46,00 | 41,50 | 6,00 | 8,00 | NBR 90Sh.A - Nitrile | |
| CF 38 PU | 38,00 | 46,00 | 41,50 | 6,00 | 8,00 | PU | |
| CF 40 BN | 40,00 | 48,00 | 43,50 | 6,00 | 8,00 | NBR 90Sh.A - Nitrile | |
| CF 40 PU | 40,00 | 48,00 | 43,50 | 6,00 | 8,00 | PU | |
| CF 42 BN | 42,00 | 50,00 | 45,50 | 6,00 | 8,00 | NBR 90Sh.A - Nitrile | |
| CF 42 PU | 42,00 | 50,00 | 45,50 | 6,00 | 8,00 | PU | |
| CF 45 BN | 45,00 | 53,00 | 48,50 | 6,00 | 8,00 | NBR 90Sh.A - Nitrile | |
| CF 45 PU | 45,00 | 53,00 | 48,50 | 6,00 | 8,00 | PU | |
| CF 48 BN | 48,00 | 56,00 | 51,50 | 6,00 | 8,00 | NBR 90Sh.A - Nitrile | |
| CF 50 BN | 50,00 | 58,00 | 53,50 | 6,00 | 8,00 | NBR 90Sh.A - Nitrile | |
| CF 50 PU | 50,00 | 58,00 | 53,50 | 6,00 | 8,00 | PU | |
| CF 52 BN | 52,00 | 60,00 | 55,50 | 6,00 | 8,00 | NBR 90Sh.A - Nitrile | |
| CF 55 BN | 55,00 | 63,00 | 58,50 | 6,00 | 8,00 | NBR 90Sh.A - Nitrile | |
| CF 55 PU | 55,00 | 63,00 | 58,50 | 6,00 | 8,00 | PU | |
| CF 56 BN | 56,00 | 64,00 | 59,50 | 6,00 | 8,00 | NBR 90Sh.A - Nitrile | |
| CF 56 PU | 56,00 | 64,00 | 59,50 | 6,00 | 8,00 | PU | |
| CF 60 BN | 60,00 | 68,00 | 63,50 | 6,00 | 8,00 | NBR 90Sh.A - Nitrile | |
| CF 60 PU | 60,00 | 68,00 | 63,50 | 6,00 | 8,00 | PU | |
| CF 63 BN | 63,00 | 71,00 | 66,50 | 6,00 | 8,00 | NBR 90Sh.A - Nitrile | |
| CF 63 PU | 63,00 | 71,00 | 66,50 | 6,00 | 8,00 | PU | |
| CF 65 BN | 65,00 | 73,00 | 68,50 | 6,00 | 8,00 | NBR 90Sh.A - Nitrile | |
| CF 65 PU | 65,00 | 73,00 | 68,50 | 6,00 | 8,00 | PU |
