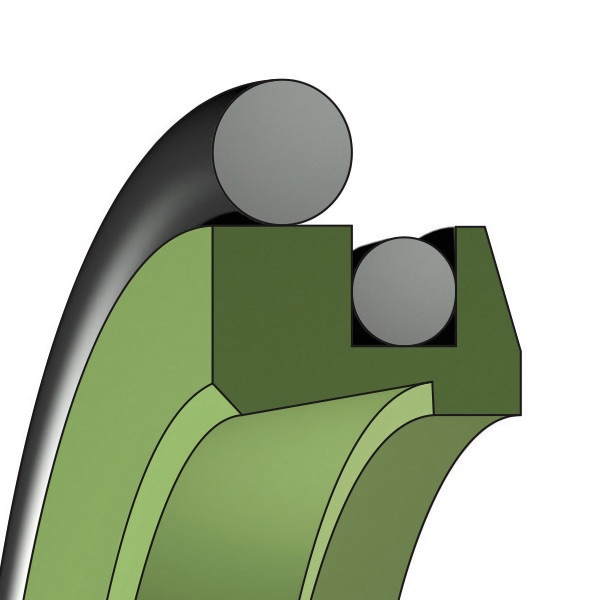

RT-BDouble-acting Wipers
Double-acting O-Ring energized scraper, it prevents the contamination from the outside, increasing effective system service life. Main characteristics are: low friction, no stick-slip and high wiper effect guaranteed over time. Scraper structure and profile make it particularly suitable for heavy duty applications and it prevents presence of impurities in proximity of the rod access. Different materials available on request for special applications.
Seal capabilities
- Temperature: from -50 to 210 °C
- Max. speed: 15 m/s
Applications
This product is interchangeable with:
WEG - PT2 - 21E - NRT2
21E01 1016 A 24 21E01 1016 A24 21E01-1016-A24 WEG101016 M12N WEG101016 T46N WEG101016-M12N WEG101016-T46N WEG101016M12N WEG101016T46N
21E01 1600 A 24 21E01 1600 A24 21E01-1600-A24 K716-160 K716-160 PTFE/NBR WEG101600 M12N WEG101600 T46N WEG101600-M12N WEG101600-T46N WEG101600M12N WEG101600T46N
21E01 1405 E 24 21E01 1405 E24 21E01-1405-E24 WEG101405 M12V WEG101405 T46V WEG101405-M12V WEG101405-T46V WEG101405M12V WEG101405T46V
21E01 1650 E 24 21E01 1650 E24 21E01-1650-E24 WEG101650 M12V WEG101650 T46V WEG101650-M12V WEG101650-T46V WEG101650M12V WEG101650T46V
21E01 2200 E 24 21E01 2200 E24 21E01-2200-E24 WEG102200 M12V WEG102200 T46V WEG102200-M12V WEG102200-T46V WEG102200M12V WEG102200T46V
21E01 1600 E 24 21E01 1600 E24 21E01-1600-E24 WEG101600 M12V WEG101600 T46V WEG101600-M12V WEG101600-T46V WEG101600M12V WEG101600T46V
21E01 1200 E 24 21E01 1200 E24 21E01-1200-E24 WEG101200 M12V WEG101200 T46V WEG101200-M12V WEG101200-T46V WEG101200M12V WEG101200T46V
21E01 1750 A 24 21E01 1750 A24 21E01-1750-A24 WEG101750 M12N WEG101750 T46N WEG101750-M12N WEG101750-T46N WEG101750M12N WEG101750T46N
21E01 1882 A 24 21E01 1882 A24 21E01-1882-A24 WEG101882 M12N WEG101882 T46N WEG101882-M12N WEG101882-T46N WEG101882M12N WEG101882T46N
21E01 2286 E 24 21E01 2286 E24 21E01-2286-E24 WEG102286 M12V WEG102286 T46V WEG102286-M12V WEG102286-T46V WEG102286M12V WEG102286T46V
21E01 1405 A 24 21E01 1405 A24 21E01-1405-A24 WEG101405 M12N WEG101405 T46N WEG101405-M12N WEG101405-T46N WEG101405M12N WEG101405T46N
21E01 2110 E 24 21E01 2110 E24 21E01-2110-E24 WEG102110 M12V WEG102110 T46V WEG102110-M12V WEG102110-T46V WEG102110M12V WEG102110T46V
21E01 1500 E 24 21E01 1500 E24 21E01-1500-E24 WEG101500 M12V WEG101500 T46V WEG101500-M12V WEG101500-T46V WEG101500M12V WEG101500T46V
21E01 1300 A 24 21E01 1300 A24 21E01-1300-A24 K716-130 K716-130 PTFE/NBR WEG101300 M12N WEG101300 T46N WEG101300-M12N WEG101300-T46N WEG101300M12N WEG101300T46N
21E01 2000 A 24 21E01 2000 A24 21E01-2000-A24 K716-200 K716-200 PTFE/NBR WEG102000 M12N WEG102000 T46N WEG102000-M12N WEG102000-T46N WEG102000M12N WEG102000T46N
21E01 1882 E 24 21E01 1882 E24 21E01-1882-E24 WEG101882 M12V WEG101882 T46V WEG101882-M12V WEG101882-T46V WEG101882M12V WEG101882T46V
21E01 2110 A 24 21E01 2110 A24 21E01-2110-A24 WEG102110 M12N WEG102110 T46N WEG102110-M12N WEG102110-T46N WEG102110M12N WEG102110T46N
21E01 1530 A 24 21E01 1530 A24 21E01-1530-A24 WEG101530 M12N WEG101530 T46N WEG101530-M12N WEG101530-T46N WEG101530M12N WEG101530T46N
21E01 1500 A 24 21E01 1500 A24 21E01-1500-A24 K716-150 K716-150 PTFE/NBR WEG101500 M12N WEG101500 T46N WEG101500-M12N WEG101500-T46N WEG101500M12N WEG101500T46N
21E01 1300 E 24 21E01 1300 E24 21E01-1300-E24 WEG101300 M12V WEG101300 T46V WEG101300-M12V WEG101300-T46V WEG101300M12V WEG101300T46V
21E01 1900 A 24 21E01 1900 A24 21E01-1900-A24 K716-190 K716-190 PTFE/NBR WEG101900 M12N WEG101900 T46N WEG101900-M12N WEG101900-T46N WEG101900M12N WEG101900T46N
21E01 1250 E 24 21E01 1250 E24 21E01-1250-E24 WEG101250 M12V WEG101250 T46V WEG101250-M12V WEG101250-T46V WEG101250M12V WEG101250T46V
21E01 1550 E 24 21E01 1550 E24 21E01-1550-E24 WEG101550 M12V WEG101550 T46V WEG101550-M12V WEG101550-T46V WEG101550M12V WEG101550T46V
21E01 2100 E 24 21E01 2100 E24 21E01-2100-E24 WEG102100 M12V WEG102100 T46V WEG102100-M12V WEG102100-T46V WEG102100M12V WEG102100T46V
21E01 1200 A 24 21E01 1200 A24 21E01-1200-A24 K716-120 K716-120 PTFE/NBR WEG101200 M12N WEG101200 T46N WEG101200-M12N WEG101200-T46N WEG101200M12N WEG101200T46N
21E01 1397 A 24 21E01 1397 A24 21E01-1397-A24 WEG101397 M12N WEG101397 T46N WEG101397-M12N WEG101397-T46N WEG101397M12N WEG101397T46N
21E01 1900 E 24 21E01 1900 E24 21E01-1900-E24 WEG101900 M12V WEG101900 T46V WEG101900-M12V WEG101900-T46V WEG101900M12V WEG101900T46V
21E01 1100 A 24 21E01 1100 A24 21E01-1100-A24 K716-110 K716-110 PTFE/NBR WEG101100 M12N WEG101100 T46N WEG101100-M12N WEG101100-T46N WEG101100M12N WEG101100T46N
21E01 1400 E 24 21E01 1400 E24 21E01-1400-E24 WEG101400 M12V WEG101400 T46V WEG101400-M12V WEG101400-T46V WEG101400M12V WEG101400T46V
21E01 1550 A 24 21E01 1550 A24 21E01-1550-A24 WEG101550 M12N WEG101550 T46N WEG101550-M12N WEG101550-T46N WEG101550M12N WEG101550T46N
21E01 2100 A 24 21E01 2100 A24 21E01-2100-A24 WEG102100 M12N WEG102100 T46N WEG102100-M12N WEG102100-T46N WEG102100M12N WEG102100T46N
21E01 1800 A 24 21E01 1800 A24 21E01-1800-A24 K716-180 K716-180 PTFE/NBR WEG101800 M12N WEG101800 T46N WEG101800-M12N WEG101800-T46N WEG101800M12N WEG101800T46N
21E01 1397 E 24 21E01 1397 E24 21E01-1397-E24 WEG101397 M12V WEG101397 T46V WEG101397-M12V WEG101397-T46V WEG101397M12V WEG101397T46V
21E01 1800 E 24 21E01 1800 E24 21E01-1800-E24 WEG101800 M12V WEG101800 T46V WEG101800-M12V WEG101800-T46V WEG101800M12V WEG101800T46V
21E01 1250 A 24 21E01 1250 A24 21E01-1250-A24 K716-125 K716-125 PTFE/NBR WEG101250 M12N WEG101250 T46N WEG101250-M12N WEG101250-T46N WEG101250M12N WEG101250T46N
21E01 1000 E 24 21E01 1000 E24 21E01-1000-E24 WEG101000 M12V WEG101000 T46V WEG101000-M12V WEG101000-T46V WEG101000M12V WEG101000T46V
21E01 1530 E 24 21E01 1530 E24 21E01-1530-E24 WEG101530 M12V WEG101530 T46V WEG101530-M12V WEG101530-T46V WEG101530M12V WEG101530T46V
21E01 2000 E 24 21E01 2000 E24 21E01-2000-E24 WEG102000 M12V WEG102000 T46V WEG102000-M12V WEG102000-T46V WEG102000M12V WEG102000T46V
21E01 1750 E 24 21E01 1750 E24 21E01-1750-E24 WEG101750 M12V WEG101750 T46V WEG101750-M12V WEG101750-T46V WEG101750M12V WEG101750T46V
21E01 1920 E 24 21E01 1920 E24 21E01-1920-E24 WEG101920 M12V WEG101920 T46V WEG101920-M12V WEG101920-T46V WEG101920M12V WEG101920T46V
21E01 1920 A 24 21E01 1920 A24 21E01-1920-A24 WEG101920 M12N WEG101920 T46N WEG101920-M12N WEG101920-T46N WEG101920M12N WEG101920T46N
21E01 2286 A 24 21E01 2286 A24 21E01-2286-A24 WEG102286 M12N WEG102286 T46N WEG102286-M12N WEG102286-T46N WEG102286M12N WEG102286T46N
21E01 1000 A 24 21E01 1000 A24 21E01-1000-A24 K716-100 K716-100 PTFE/NBR WEG101000 M12N WEG101000 T46N WEG101000-M12N WEG101000-T46N WEG101000M12N WEG101000T46N
21E01 1100 E 24 21E01 1100 E24 21E01-1100-E24 WEG101100 M12V WEG101100 T46V WEG101100-M12V WEG101100-T46V WEG101100M12V WEG101100T46V
21E01 1016 E 24 21E01 1016 E24 21E01-1016-E24 WEG101016 M12V WEG101016 T46V WEG101016-M12V WEG101016-T46V WEG101016M12V WEG101016T46V
21E01 1400 A 24 21E01 1400 A24 21E01-1400-A24 K716-140 K716-140 PTFE/NBR WEG101400 M12N WEG101400 T46N WEG101400-M12N WEG101400-T46N WEG101400M12N WEG101400T46N
21E01 1700 E 24 21E01 1700 E24 21E01-1700-E24 WEG101700 M12V WEG101700 T46V WEG101700-M12V WEG101700-T46V WEG101700M12V WEG101700T46V
21E01 1650 A 24 21E01 1650 A24 21E01-1650-A24 WEG101650 M12N WEG101650 T46N WEG101650-M12N WEG101650-T46N WEG101650M12N WEG101650T46N
21E01 2200 A 24 21E01 2200 A24 21E01-2200-A24 K716-220 K716-220 PTFE/NBR WEG102200 M12N WEG102200 T46N WEG102200-M12N WEG102200-T46N WEG102200M12N WEG102200T46N
21E01 1700 A 24 21E01 1700 A24 21E01-1700-A24 K716-170 K716-170 PTFE/NBR WEG101700 M12N WEG101700 T46N WEG101700-M12N WEG101700-T46N WEG101700M12N WEG101700T46N
Search by code
| Description | Ø d | Ø D | Ø I | L | L1 | ||
|---|---|---|---|---|---|---|---|
| RT-31-B-100 B40 BN | 100,00 | 122,20 | 110,70 | 6,30 | 4,20 | PTFE+Bz/NBR | |
| RT-31-B-100 B40 VT | 100,00 | 122,20 | 110,70 | 6,30 | 4,20 | PTFE+Bz/FKM | |
| RT-31-B-101,6 B40 BN | 101,60 | 123,80 | 112,30 | 6,30 | 4,20 | PTFE+Bz/NBR | |
| RT-31-B-101,6 B40 VT | 101,60 | 123,80 | 112,30 | 6,30 | 4,20 | PTFE+Bz/FKM | |
| RT-31-B-110 B40 BN | 110,00 | 132,20 | 120,70 | 6,30 | 4,20 | PTFE+Bz/NBR | |
| RT-31-B-110 B40 VT | 110,00 | 132,20 | 120,70 | 6,30 | 4,20 | PTFE+Bz/FKM | |
| RT-31-B-120 B40 BN | 120,00 | 142,20 | 130,70 | 6,30 | 4,20 | PTFE+Bz/NBR | |
| RT-31-B-120 B40 VT | 120,00 | 142,20 | 130,70 | 6,30 | 4,20 | PTFE+Bz/FKM | |
| RT-31-B-125 B40 BN | 125,00 | 147,20 | 135,70 | 6,30 | 4,20 | PTFE+Bz/NBR | |
| RT-31-B-125 B40 VT | 125,00 | 147,20 | 135,70 | 6,30 | 4,20 | PTFE+Bz/FKM | |
| RT-31-B-130 B40 BN | 130,00 | 152,20 | 140,70 | 6,30 | 4,20 | PTFE+Bz/NBR | |
| RT-31-B-130 B40 VT | 130,00 | 152,20 | 140,70 | 6,30 | 4,20 | PTFE+Bz/FKM | |
| RT-31-B-139,7 B40 BN | 139,70 | 161,90 | 150,40 | 6,30 | 4,20 | PTFE+Bz/NBR | |
| RT-31-B-139,7 B40 VT | 139,70 | 161,90 | 150,40 | 6,30 | 4,20 | PTFE+Bz/FKM | |
| RT-31-B-140 B40 BN | 140,00 | 162,20 | 150,70 | 6,30 | 4,20 | PTFE+Bz/NBR | |
| RT-31-B-140 B40 VT | 140,00 | 162,20 | 150,70 | 6,30 | 4,20 | PTFE+Bz/FKM | |
| RT-31-B-140,5 B40 BN | 140,50 | 162,70 | 151,20 | 6,30 | 4,20 | PTFE+Bz/NBR | |
| RT-31-B-140,5 B40 VT | 140,50 | 162,70 | 151,20 | 6,30 | 4,20 | PTFE+Bz/FKM | |
| RT-31-B-150 B40 BN | 150,00 | 172,20 | 160,70 | 6,30 | 4,20 | PTFE+Bz/NBR | |
| RT-31-B-150 B40 VT | 150,00 | 172,20 | 160,70 | 6,30 | 4,20 | PTFE+Bz/FKM | |
| RT-31-B-153 B40 BN | 153,00 | 175,20 | 163,70 | 6,30 | 4,20 | PTFE+Bz/NBR | |
| RT-31-B-153 B40 VT | 153,00 | 175,20 | 163,70 | 6,30 | 4,20 | PTFE+Bz/FKM | |
| RT-31-B-155 B40 BN | 155,00 | 177,20 | 165,70 | 6,30 | 4,20 | PTFE+Bz/NBR | |
| RT-31-B-155 B40 VT | 155,00 | 177,20 | 165,70 | 6,30 | 4,20 | PTFE+Bz/FKM | |
| RT-31-B-160 B40 BN | 160,00 | 182,20 | 170,70 | 6,30 | 4,20 | PTFE+Bz/NBR | |
| RT-31-B-160 B40 VT | 160,00 | 182,20 | 170,70 | 6,30 | 4,20 | PTFE+Bz/FKM | |
| RT-31-B-165 B40 BN | 165,00 | 187,20 | 175,70 | 6,30 | 4,20 | PTFE+Bz/NBR | |
| RT-31-B-165 B40 VT | 165,00 | 187,20 | 175,70 | 6,30 | 4,20 | PTFE+Bz/FKM | |
| RT-31-B-170 B40 BN | 170,00 | 192,20 | 180,70 | 6,30 | 4,20 | PTFE+Bz/NBR | |
| RT-31-B-170 B40 VT | 170,00 | 192,20 | 180,70 | 6,30 | 4,20 | PTFE+Bz/FKM | |
| RT-31-B-175 B40 BN | 175,00 | 197,20 | 185,70 | 6,30 | 4,20 | PTFE+Bz/NBR | |
| RT-31-B-175 B40 VT | 175,00 | 197,20 | 185,70 | 6,30 | 4,20 | PTFE+Bz/FKM | |
| RT-31-B-180 B40 BN | 180,00 | 202,20 | 190,70 | 6,30 | 4,20 | PTFE+Bz/NBR | |
| RT-31-B-180 B40 VT | 180,00 | 202,20 | 190,70 | 6,30 | 4,20 | PTFE+Bz/FKM | |
| RT-31-B-188,2 B40 BN | 188,20 | 210,40 | 198,90 | 6,30 | 4,20 | PTFE+Bz/NBR | |
| RT-31-B-188,2 B40 VT | 188,20 | 210,40 | 198,90 | 6,30 | 4,20 | PTFE+Bz/FKM | |
| RT-31-B-190 B40 BN | 190,00 | 212,20 | 200,70 | 6,30 | 4,20 | PTFE+Bz/NBR | |
| RT-31-B-190 B40 VT | 190,00 | 212,20 | 200,70 | 6,30 | 4,20 | PTFE+Bz/FKM | |
| RT-31-B-192 B40 BN | 192,00 | 214,20 | 202,70 | 6,30 | 4,20 | PTFE+Bz/NBR | |
| RT-31-B-192 B40 VT | 192,00 | 214,20 | 202,70 | 6,30 | 4,20 | PTFE+Bz/FKM | |
| RT-31-B-200 B40 BN | 200,00 | 222,20 | 210,70 | 6,30 | 4,20 | PTFE+Bz/NBR | |
| RT-31-B-200 B40 VT | 200,00 | 222,20 | 210,70 | 6,30 | 4,20 | PTFE+Bz/FKM | |
| RT-31-B-210 B40 BN | 210,00 | 232,20 | 220,70 | 6,30 | 4,20 | PTFE+Bz/NBR | |
| RT-31-B-210 B40 VT | 210,00 | 232,20 | 220,70 | 6,30 | 4,20 | PTFE+Bz/FKM | |
| RT-31-B-211 B40 BN | 211,00 | 233,20 | 221,70 | 6,30 | 4,20 | PTFE+Bz/NBR | |
| RT-31-B-211 B40 VT | 211,00 | 233,20 | 221,70 | 6,30 | 4,20 | PTFE+Bz/FKM | |
| RT-31-B-220 B40 BN | 220,00 | 242,20 | 230,70 | 6,30 | 4,20 | PTFE+Bz/NBR | |
| RT-31-B-220 B40 VT | 220,00 | 242,20 | 230,70 | 6,30 | 4,20 | PTFE+Bz/FKM | |
| RT-31-B-228,6 B40 BN | 228,60 | 250,80 | 239,30 | 6,30 | 4,20 | PTFE+Bz/NBR | |
| RT-31-B-228,6 B40 VT | 228,60 | 250,80 | 239,30 | 6,30 | 4,20 | PTFE+Bz/FKM |
