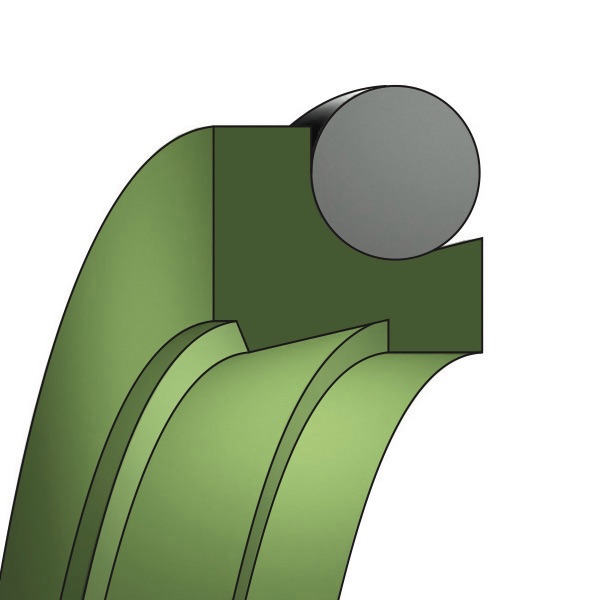

RCDouble-acting Wipers
Double-acting O-Ring energized scraper, it prevents the contamination from the outside, increasing effective system service life. Main characteristics are: low friction, no stick-slip and high wiper effect guaranteed over time. Double scraping action increases the efficiency of the sealing system. Especially suitable for heavy duty applications. Different materials available on request for special applications.
Seal capabilities
- Temperature: from -50 to 210 °C
- Max. speed: 15 m/s
Applications
This product is interchangeable with:
WE50 - WE51 - WE52 - WE53 - WE54 - WE55 - WE55X - WEP - AD61 - BSZ
K703-040 K703-040 PTFE/NBR WE5100400-M12N WE5100400-T46N WE5100400M12N WE5100400T46N
K703-050 K703-050 PTFE/NBR WE5100500-M12N WE5100500-T46N WE5100500M12N WE5100500T46N
WE5100630-M12V WE5100630-T46V WE5100630M12V WE5100630T46V
WE5000280-M12V WE5000280-T46V WE5000280M12V WE5000280T46V
WE5200750-M12V WE5200750-T46V WE5200750M12V WE5200750T46V
K703-060 K703-060 PTFE/NBR WE5100600-M12N WE5100600-T46N WE5100600M12N WE5100600T46N
K703-025 K703-025 PTFE/NBR WE5000250-M12N WE5000250-T46N WE5000250M12N WE5000250T46N
WE5200850-M12V WE5200850-T46V WE5200850M12V WE5200850T46V
WE5000350-M12N WE5000350-T46N WE5000350M12N WE5000350T46N
WE5100500-M12V WE5100500-T46V WE5100500M12V WE5100500T46V
WE5100560-M12V WE5100560-T46V WE5100560M12V WE5100560T46V
WE5100400-M12V WE5100400-T46V WE5100400M12V WE5100400T46V
K703-063 K703-063 PTFE/NBR WE5100630-M12N WE5100630-T46N WE5100630M12N WE5100630T46N
WE5100600-M12V WE5100600-T46V WE5100600M12V WE5100600T46V
K703-056 K703-056 PTFE/NBR WE5100560-M12N WE5100560-T46N WE5100560M12N WE5100560T46N
K703-085 K703-085 PTFE/NBR WE5200850-M12N WE5200850-T46N WE5200850M12N WE5200850T46N
K703-075 K703-075 PTFE/NBR WE5200750-M12N WE5200750-T46N WE5200750M12N WE5200750T46N
WE5000200-M12V WE5000200-T46V WE5000200M12V WE5000200T46V
K703-032 K703-032 PTFE/NBR WE5000320-M12N WE5000320-T46N WE5000320M12N WE5000320T46N
K703-020 K703-020 PTFE/NBR WE5000200-M12N WE5000200-T46N WE5000200M12N WE5000200T46N
WE5000230-M12V WE5000230-T46V WE5000230M12V WE5000230T46V
WE5000320-M12V WE5000320-T46V WE5000320M12V WE5000320T46V
WE5000350-M12V WE5000350-T46V WE5000350M12V WE5000350T46V
WE5000230-M12N WE5000230-T46N WE5000230M12N WE5000230T46N
WE5200700-M12V WE5200700-T46V WE5200700M12V WE5200700T46V
WE5200800-M12V WE5200800-T46V WE5200800M12V WE5200800T46V
K703-045 K703-045 PTFE/NBR WE5100450-M12N WE5100450-T46N WE5100450M12N WE5100450T46N
WE5000160-M12V WE5000160-T46V WE5000160M12V WE5000160T46V
WE5000360-M12V WE5000360-T46V WE5000360M12V WE5000360T46V
K703-055 K703-055 PTFE/NBR WE5100550-M12N WE5100550-T46N WE5100550M12N WE5100550T46N
K703-065 K703-065 PTFE/NBR WE5100650-M12N WE5100650-T46N WE5100650M12N WE5100650T46N
WE5100450-M12V WE5100450-T46V WE5100450M12V WE5100450T46V
WE5200900-M12V WE5200900-T46V WE5200900M12V WE5200900T46V
K703-070 K703-070 PTFE/NBR WE5200700-M12N WE5200700-T46N WE5200700M12N WE5200700T46N
K703-080 K703-080 PTFE/NBR WE5200800-M12N WE5200800-T46N WE5200800M12N WE5200800T46N
WE5100550-M12V WE5100550-T46V WE5100550M12V WE5100550T46V
WE5100650-M12V WE5100650-T46V WE5100650M12V WE5100650T46V
K703-090 K703-090 PTFE/NBR WE5200900-M12N WE5200900-T46N WE5200900M12N WE5200900T46N
WE5000300-M12V WE5000300-T46V WE5000300M12V WE5000300T46V
WE5000100-M12V WE5000100-T46V WE5000100M12V WE5000100T46V
K703-022 K703-022 PTFE/NBR WE5000220-M12N WE5000220-T46N WE5000220M12N WE5000220T46N
WE5000220-M12V WE5000220-T46V WE5000220M12V WE5000220T46V
WE5100420-M12V WE5100420-T46V WE5100420M12V WE5100420T46V
WE5000100-M12N WE5000100-T46N WE5000100M12N WE5000100T46N
WE5000160-M12N WE5000160-T46N WE5000160M12N WE5000160T46N
K703-030 K703-030 PTFE/NBR WE5000300-M12N WE5000300-T46N WE5000300M12N WE5000300T46N
K703-036/1 K703-036/1 PTFE/NBR WE5000360-M12N WE5000360-T46N WE5000360M12N WE5000360T46N
K703-028 K703-028 PTFE/NBR WE5000280-M12N WE5000280-T46N WE5000280M12N WE5000280T46N
WE5100420-M12N WE5100420-T46N WE5100420M12N WE5100420T46N
WE5000250-M12V WE5000250-T46V WE5000250M12V WE5000250T46V
Search by code
| Description | Ø d | Ø D | Ø I | L | ||
|---|---|---|---|---|---|---|
| RC/A 10 B40 BN | 10,00 | 17,60 | 11,50 | 4,20 | PTFE+Bz/NBR | |
| RC/A 10 B40 VT | 10,00 | 17,60 | 11,50 | 4,20 | PTFE+Bz/FKM | |
| RC/A 16 B40 BN | 16,00 | 23,60 | 17,50 | 4,20 | PTFE+Bz/NBR | |
| RC/A 16 B40 VT | 16,00 | 23,60 | 17,50 | 4,20 | PTFE+Bz/FKM | |
| RC/A 20 B40 BN | 20,00 | 27,60 | 21,50 | 4,20 | PTFE+Bz/NBR | |
| RC/A 20 B40 VT | 20,00 | 27,60 | 21,50 | 4,20 | PTFE+Bz/FKM | |
| RC/A 22 B40 BN | 22,00 | 29,60 | 23,50 | 4,20 | PTFE+Bz/NBR | |
| RC/A 22 B40 VT | 22,00 | 29,60 | 23,50 | 4,20 | PTFE+Bz/FKM | |
| RC/A 23 B40 BN | 23,00 | 30,60 | 24,50 | 4,20 | PTFE+Bz/NBR | |
| RC/A 23 B40 VT | 23,00 | 30,60 | 24,50 | 4,20 | PTFE+Bz/FKM | |
| RC/A 25 B40 BN | 25,00 | 32,60 | 26,50 | 4,20 | PTFE+Bz/NBR | |
| RC/A 25 B40 VT | 25,00 | 32,60 | 26,50 | 4,20 | PTFE+Bz/FKM | |
| RC/A 28 B40 BN | 28,00 | 35,60 | 29,50 | 4,20 | PTFE+Bz/NBR | |
| RC/A 28 B40 VT | 28,00 | 35,60 | 29,50 | 4,20 | PTFE+Bz/FKM | |
| RC/A 30 B40 BN | 30,00 | 37,60 | 31,50 | 4,20 | PTFE+Bz/NBR | |
| RC/A 30 B40 VT | 30,00 | 37,60 | 31,50 | 4,20 | PTFE+Bz/FKM | |
| RC/A 32 B40 BN | 32,00 | 39,60 | 33,50 | 4,20 | PTFE+Bz/NBR | |
| RC/A 32 B40 VT | 32,00 | 39,60 | 33,50 | 4,20 | PTFE+Bz/FKM | |
| RC/A 35 B40 BN | 35,00 | 42,60 | 36,50 | 4,20 | PTFE+Bz/NBR | |
| RC/A 35 B40 VT | 35,00 | 42,60 | 36,50 | 4,20 | PTFE+Bz/FKM | |
| RC/A 36 B40 BN | 36,00 | 43,60 | 37,50 | 4,20 | PTFE+Bz/NBR | |
| RC/A 36 B40 VT | 36,00 | 43,60 | 37,50 | 4,20 | PTFE+Bz/FKM | |
| RC/B 40 B40 BN | 40,00 | 48,80 | 41,50 | 6,30 | PTFE+Bz/NBR | |
| RC/B 40 B40 VT | 40,00 | 48,80 | 41,50 | 6,30 | PTFE+Bz/FKM | |
| RC/B 42 B40 BN | 42,00 | 50,80 | 43,50 | 6,30 | PTFE+Bz/NBR | |
| RC/B 42 B40 VT | 42,00 | 50,80 | 43,50 | 6,30 | PTFE+Bz/FKM | |
| RC/B 45 B40 BN | 45,00 | 53,80 | 46,50 | 6,30 | PTFE+Bz/NBR | |
| RC/B 45 B40 VT | 45,00 | 53,80 | 46,50 | 6,30 | PTFE+Bz/FKM | |
| RC/B 50 B40 BN | 50,00 | 58,80 | 51,50 | 6,30 | PTFE+Bz/NBR | |
| RC/B 50 B40 VT | 50,00 | 58,80 | 51,50 | 6,30 | PTFE+Bz/FKM | |
| RC/B 55 B40 BN | 55,00 | 63,80 | 56,50 | 6,30 | PTFE+Bz/NBR | |
| RC/B 55 B40 VT | 55,00 | 63,80 | 56,50 | 6,30 | PTFE+Bz/FKM | |
| RC/B 56 B40 BN | 56,00 | 64,80 | 57,50 | 6,30 | PTFE+Bz/NBR | |
| RC/B 56 B40 VT | 56,00 | 64,80 | 57,50 | 6,30 | PTFE+Bz/FKM | |
| RC/B 60 B40 BN | 60,00 | 68,80 | 61,50 | 6,30 | PTFE+Bz/NBR | |
| RC/B 60 B40 VT | 60,00 | 68,80 | 61,50 | 6,30 | PTFE+Bz/FKM | |
| RC/B 63 B40 BN | 63,00 | 71,80 | 64,50 | 6,30 | PTFE+Bz/NBR | |
| RC/B 63 B40 VT | 63,00 | 71,80 | 64,50 | 6,30 | PTFE+Bz/FKM | |
| RC/B 65 B40 BN | 65,00 | 73,80 | 66,50 | 6,30 | PTFE+Bz/NBR | |
| RC/B 65 B40 VT | 65,00 | 73,80 | 66,50 | 6,30 | PTFE+Bz/FKM | |
| RC/C 70 B40 BN | 70,00 | 82,20 | 72,00 | 8,10 | PTFE+Bz/NBR | |
| RC/C 70 B40 VT | 70,00 | 82,20 | 72,00 | 8,10 | PTFE+Bz/FKM | |
| RC/C 75 B40 BN | 75,00 | 87,20 | 77,00 | 8,10 | PTFE+Bz/NBR | |
| RC/C 75 B40 VT | 75,00 | 87,20 | 77,00 | 8,10 | PTFE+Bz/FKM | |
| RC/C 80 B40 BN | 80,00 | 92,20 | 82,00 | 8,10 | PTFE+Bz/NBR | |
| RC/C 80 B40 VT | 80,00 | 92,20 | 82,00 | 8,10 | PTFE+Bz/FKM | |
| RC/C 85 B40 BN | 85,00 | 97,20 | 87,00 | 8,10 | PTFE+Bz/NBR | |
| RC/C 85 B40 VT | 85,00 | 97,20 | 87,00 | 8,10 | PTFE+Bz/FKM | |
| RC/C 90 B40 BN | 90,00 | 102,20 | 92,00 | 8,10 | PTFE+Bz/NBR | |
| RC/C 90 B40 VT | 90,00 | 102,20 | 92,00 | 8,10 | PTFE+Bz/FKM |
