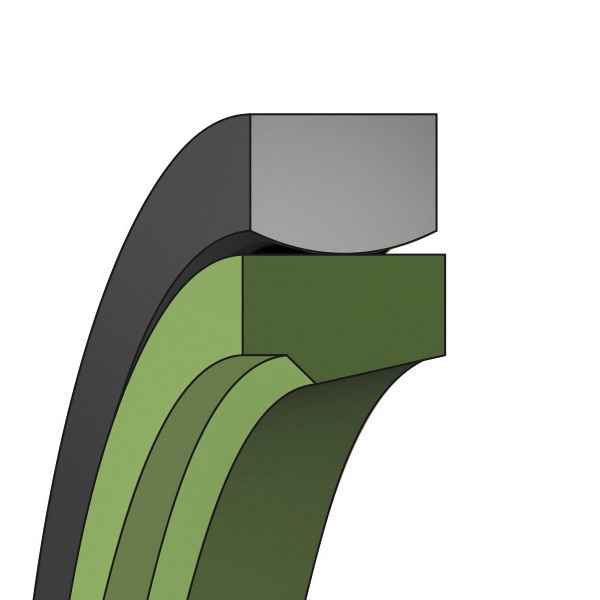

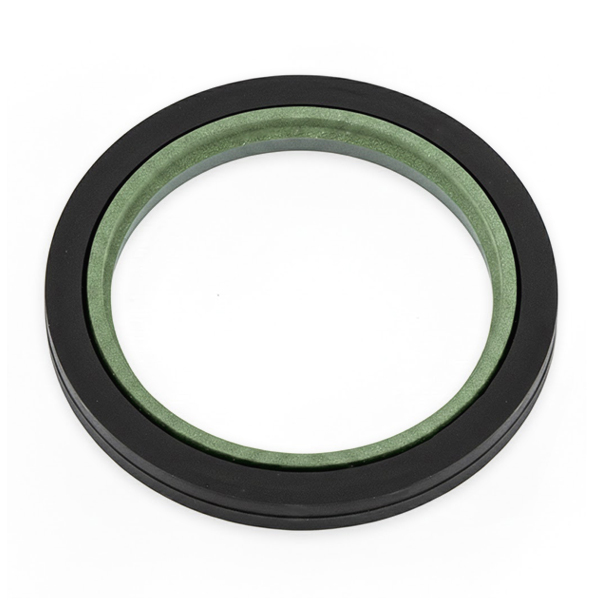

OSSGuarnizione semplice effetto per Stelo
Guarnizione di tenuta per stelo a semplice effetto con elemento energizzante in elastomero. Simile alla ITG ma particolarmente adatta per impieghi gravosi. Fornibile nelle diverse accoppiate di mescole-compounds a seconda delle condizioni di impiego.
Caratteristiche
- Temperatura: da -50 a 210 °C
- Pressione massima: 800 bar
- Velocità massima: 15 m/s
Utilizzo
Questo prodotto è intercambiabile con:
OMS-S - S09 - ES - 11S00 - 11S01 - 11S02 - 11S03 - 11S04 - 11S05 - 11S06
11S02 1650 A 24 11S02-1650-A-24 11S02-1650-A24 11S021650A24
11S03 2372 A 24 11S03-2372-A-24 11S03-2372-A24 11S032372A24
11S02 1200 A 24 11S02-1200-A-24 11S02-1200-A24 11S021200A24
11S03 2100 A 24 11S03-2100-A-24 11S03-2100-A24 11S032100A24
11S03 2800 A 24 11S03-2800-A-24 11S03-2800-A24 11S032800A24
11S03 2214 A 24 11S03-2214-A-24 11S03-2214-A24 11S032214A24
11S04 3300 A 24 11S04-3300-A-24 11S04-3300-A24 11S043300A24
11S00 0250 A 24 11S00-0250-A-24 11S00-0250-A24 11S000250A24
11S01 0450 A 24 11S01-0450-A-24 11S01-0450-A24 11S010450A24
11S04 3400 A 24 11S04-3400-A-24 11S04-3400-A24 11S043400A24
11S02 0750 A 24 11S02-0750-A-24 11S02-0750-A24 11S020750A24
11S02 1300 A 24 11S02-1300-A-24 11S02-1300-A24 11S021300A24
11S02 1580 A 24 11S02-1580-A-24 11S02-1580-A24 11S021580A24
11S03 2900 A 24 11S03-2900-A-24 11S03-2900-A24 11S032900A24
11S03 3000 A 24 11S03-3000-A-24 11S03-3000-A24 11S033000A24
11S04 3100 A 24 11S04-3100-A-24 11S04-3100-A24 11S043100A24
11S02 1600 A 24 11S02-1600-A-24 11S02-1600-A24 11S021600A24
11S02 1000 A 24 11S02-1000-A-24 11S02-1000-A24 11S021000A24
11S02 1250 A 24 11S02-1250-A-24 11S02-1250-A24 11S021250A24
11S03 2477 A 24 11S03-2477-A-24 11S03-2477-A24 11S032477A24
11S03 2200 A 24 11S03-2200-A-24 11S03-2200-A24 11S032200A24
11S01 0400 A 24 11S01-0400-A-24 11S01-0400-A24 11S010400A24
11S02 0800 A 24 11S02-0800-A-24 11S02-0800-A24 11S020800A24
11S01 0500 A 24 11S01-0500-A-24 11S01-0500-A24 11S010500A24
11S02 1133 A 24 11S02-1133-A-24 11S02-1133-A24 11S021133A24
11S01 0560 A 24 11S01-0560-A-24 11S01-0560-A24 11S010560A24
11S04 3250 A 24 11S04-3250-A-24 11S04-3250-A24 11S043250A24
11S00 0350 A 24 11S00-0350-A-24 11S00-0350-A24 11S000350A24
11S00 0300 A 24 11S00-0300-A-24 11S00-0300-A24 11S000300A24
11S02 1150 A 24 11S02-1150-A-24 11S02-1150-A24 11S021150A24
11S00 0360 A 24 11S00-0360-A-24 11S00-0360-A24 11S000360A24
11S01 0650 A 24 11S01-0650-A-24 11S01-0650-A24 11S010650A24
11S03 2300 A 24 11S03-2300-A-24 11S03-2300-A24 11S032300A24
11S02 1700 A 24 11S02-1700-A-24 11S02-1700-A24 11S021700A24
11S02 0850 A 24 11S02-0850-A-24 11S02-0850-A24 11S020850A24
11S02 1400 A 24 11S02-1400-A-24 11S02-1400-A24 11S021400A24
11S04 3500 A 24 11S04-3500-A-24 11S04-3500-A24 11S043500A24
11S02 1050 A 24 11S02-1050-A-24 11S02-1050-A24 11S021050A24
11S04 3150 A 24 11S04-3150-A-24 11S04-3150-A24 11S043150A24
11S01 0600 A 24 11S01-0600-A-24 11S01-0600-A24 11S010600A24
11S02 1100 A 24 11S02-1100-A-24 11S02-1100-A24 11S021100A24
11S02 1450 A 24 11S02-1450-A-24 11S02-1450-A24 11S021450A24
11S02 1500 A 24 11S02-1500-A-24 11S02-1500-A24 11S021500A24
11S02 2000 A 24 11S02-2000-A-24 11S02-2000-A24 11S022000A24
11S01 0630 A 24 11S01-0630-A-24 11S01-0630-A24 11S010630A24
11S00 0200 A 24 11S00-0200-A-24 11S00-0200-A24 11S000200A24
11S02 1750 A 24 11S02-1750-A-24 11S02-1750-A24 11S021750A24
11S02 1800 A 24 11S02-1800-A-24 11S02-1800-A24 11S021800A24
11S03 2650 A 24 11S03-2650-A-24 11S03-2650-A24 11S032650A24
11S03 2700 A 24 11S03-2700-A-24 11S03-2700-A24 11S032700A24
Cerca per codice
| Descrizione | Ø d | Ø D | L | Materiale | |
|---|---|---|---|---|---|
| OSS/A-20 B40 BN | 20,00 | 30,00 | 5,00 | PTFE+Bz/NBR | |
| OSS/A-25 B40 BN | 25,00 | 35,00 | 5,00 | PTFE+Bz/NBR | |
| OSS/A-30 B40 BN | 30,00 | 40,00 | 5,00 | PTFE+Bz/NBR | |
| OSS/A-35 B40 BN | 35,00 | 45,00 | 5,00 | PTFE+Bz/NBR | |
| OSS/A-36 B40 BN | 36,00 | 46,00 | 5,00 | PTFE+Bz/NBR | |
| OSS/B-40 B40 BN | 40,00 | 55,00 | 7,50 | PTFE+Bz/NBR | |
| OSS/B-45 B40 BN | 45,00 | 60,00 | 7,50 | PTFE+Bz/NBR | |
| OSS/B-50 B40 BN | 50,00 | 65,00 | 7,50 | PTFE+Bz/NBR | |
| OSS/B-56 B40 BN | 56,00 | 71,00 | 7,50 | PTFE+Bz/NBR | |
| OSS/B-60 B40 BN | 60,00 | 75,00 | 7,50 | PTFE+Bz/NBR | |
| OSS/B-63 B40 BN | 63,00 | 78,00 | 7,50 | PTFE+Bz/NBR | |
| OSS/B-65 B40 BN | 65,00 | 80,00 | 7,50 | PTFE+Bz/NBR | |
| OSS/C-75 B40 BN | 75,00 | 95,00 | 10,00 | PTFE+Bz/NBR | |
| OSS/C-80 B40 BN | 80,00 | 100,00 | 10,00 | PTFE+Bz/NBR | |
| OSS/C-85 B40 BN | 85,00 | 105,00 | 10,00 | PTFE+Bz/NBR | |
| OSS/C-100 B40 BN | 100,00 | 120,00 | 10,00 | PTFE+Bz/NBR | |
| OSS/C-105 B40 BN | 105,00 | 125,00 | 10,00 | PTFE+Bz/NBR | |
| OSS/C-110 B40 BN | 110,00 | 130,00 | 10,00 | PTFE+Bz/NBR | |
| OSS/C-113,3 B40 BN | 113,30 | 133,30 | 10,00 | PTFE+Bz/NBR | |
| OSS/C-115 B40 BN | 115,00 | 135,00 | 10,00 | PTFE+Bz/NBR | |
| OSS/C-120 B40 BN | 120,00 | 140,00 | 10,00 | PTFE+Bz/NBR | |
| OSS/C-125 B40 BN | 125,00 | 145,00 | 10,00 | PTFE+Bz/NBR | |
| OSS/C-130 B40 BN | 130,00 | 150,00 | 10,00 | PTFE+Bz/NBR | |
| OSS/C-140 B40 BN | 140,00 | 160,00 | 10,00 | PTFE+Bz/NBR | |
| OSS/C-145 B40 BN | 145,00 | 165,00 | 10,00 | PTFE+Bz/NBR | |
| OSS/C-150 B40 BN | 150,00 | 170,00 | 10,00 | PTFE+Bz/NBR | |
| OSS/C-158 B40 BN | 158,00 | 178,00 | 10,00 | PTFE+Bz/NBR | |
| OSS/C-160 B40 BN | 160,00 | 180,00 | 10,00 | PTFE+Bz/NBR | |
| OSS/C-165 B40 BN | 165,00 | 185,00 | 10,00 | PTFE+Bz/NBR | |
| OSS/C-170 B40 BN | 170,00 | 190,00 | 10,00 | PTFE+Bz/NBR | |
| OSS/C-175 B40 BN | 175,00 | 195,00 | 10,00 | PTFE+Bz/NBR | |
| OSS/C-180 B40 BN | 180,00 | 200,00 | 10,00 | PTFE+Bz/NBR | |
| OSS/C-200 B40 BN | 200,00 | 220,00 | 10,00 | PTFE+Bz/NBR | |
| OSS/D-210 B40 BN | 210,00 | 235,00 | 12,50 | PTFE+Bz/NBR | |
| OSS/D-220 B40 BN | 220,00 | 245,00 | 12,50 | PTFE+Bz/NBR | |
| OSS/D-221,4 B40 BN | 221,40 | 246,40 | 12,50 | PTFE+Bz/NBR | |
| OSS/D-230 B40 BN | 230,00 | 255,00 | 12,50 | PTFE+Bz/NBR | |
| OSS/D-237,2 B40 BN | 237,20 | 262,20 | 12,50 | PTFE+Bz/NBR | |
| OSS/D-247,7 B40 BN | 247,70 | 272,70 | 12,50 | PTFE+Bz/NBR | |
| OSS/D-265 B40 BN | 265,00 | 290,00 | 12,50 | PTFE+Bz/NBR | |
| OSS/D-270 B40 BN | 270,00 | 295,00 | 12,50 | PTFE+Bz/NBR | |
| OSS/D-280 B40 BN | 280,00 | 305,00 | 12,50 | PTFE+Bz/NBR | |
| OSS/D-290 B40 BN | 290,00 | 315,00 | 12,50 | PTFE+Bz/NBR | |
| OSS/D-300 B40 BN | 300,00 | 325,00 | 12,50 | PTFE+Bz/NBR | |
| OSS/E-310 B40 BN | 310,00 | 340,00 | 15,00 | PTFE+Bz/NBR | |
| OSS/E-315 B40 BN | 315,00 | 345,00 | 15,00 | PTFE+Bz/NBR | |
| OSS/E-325 B40 BN | 325,00 | 355,00 | 15,00 | PTFE+Bz/NBR | |
| OSS/E-330 B40 BN | 330,00 | 360,00 | 15,00 | PTFE+Bz/NBR | |
| OSS/E-340 B40 BN | 340,00 | 370,00 | 15,00 | PTFE+Bz/NBR | |
| OSS/E-350 B40 BN | 350,00 | 380,00 | 15,00 | PTFE+Bz/NBR |
