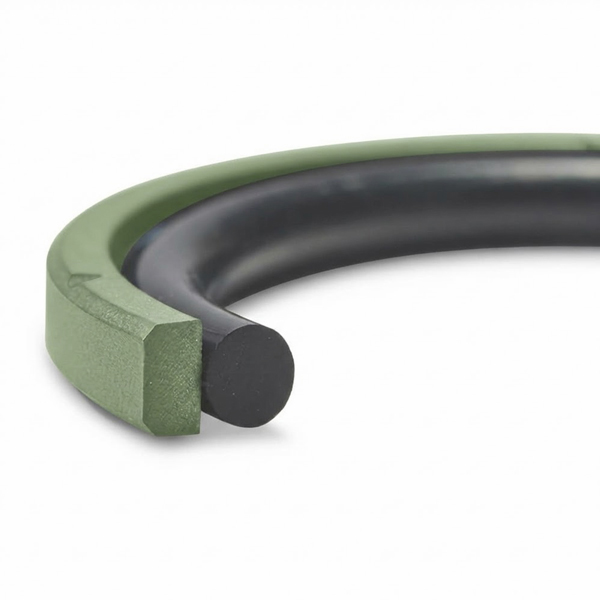

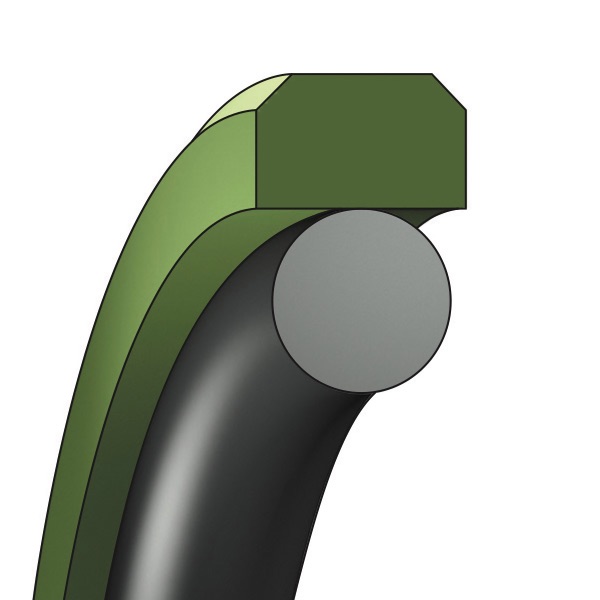

ETSGuarnizione doppio effetto per Pistone
Guarnizione di tenuta per pistone a doppio effetto energizzata da un O-ring per impieghi dinamici. Le sue doti principali sono il basso attrito, l'assenza di Stick-slip e la elevata resistenza all'usura. Ridotto ingombro. Fornibile nelle diverse accoppiate di mescole-compounds a seconda delle condizioni di impiego.
Caratteristiche
- Temperatura: da -50 a 210 °C
- Pressione massima: 600 bar
- Velocità massima: 15 m/s
Utilizzo
Questo prodotto è intercambiabile con:
PG42 - PG44 - PG46 - CSE - PT - EGR/A - E/GR-A - GER - 1820 - S55042 - S55044 - S55046 - NPS - OMK-MR - YB - OE - OG - 54 - K17 - KPOR 30 - K08-E - K08-D - K30 - 02 - LRGP - LGP - MPST - 02A00 - 02A01 - 02A02 - 02A03 - 02A04 - 02A05 - 02A06 - S-56140 - S56141 - S56142 - S56143 - S56144 - S56145 - EGR/A - 55042 - 55044 - 55046 - 56140 - 56141 - 56142 - 56143 - 56144 - BSF - SPGA - GLYD RING
NPS 14 YBV 14 9,1 2,2 YBV 14 9.1 2.2 GER 0140 02A00 0140 E 24 N 02A00-0140-E-24-N 02A00-0140-E24N 02A000140E24N E/GR 0140 A 55/9775 E/GR-0140-A-55/9775 E/GR0140A-55/9775 EGR 0140 A 55/9775 PG4400140-T46V PT0000140 PT0000140-M12V PT0000140-T46V
NPS 16 YB 16 8,5 3,2 YB 16 8.5 3.2 GER 0160 02A01 0160 A 24 N 02A01-0160-A-24-N 02A01-0160-A24N 02A010160A24N PG4400160-T46N PT0100160 PT0100160-M12N PT0100160-T46N E/GR 0160 A 55/4470 E/GR-0160-A-55/4470 E/GR0160A-55/4470 EGR 0160 A 55/4470
NPS/L 28 YB 28 23,1 2,2 YB 28 23.1 2.2 GER/L 0280 PG4600280-T46N PT0000280 PT0000280-M12N PT0000280-T46N 02A00 0280 A 24 N 02A00-0280-A-24-N 02A00-0280-A24N 02A000280A24N E/GR-L 0280 A 55/4470 E/GR-L-0280-A-55/4470 E/GR-L0280A-55/4470 EGR/L 0280 A 55/4470
NPS 28 YBV 28 20,5 3,2 YBV 28 20.5 3.2 GER 0280 02A01 0280 E 24 N 02A01-0280-E-24-N 02A01-0280-E24N 02A010280E24N PG4400280-T46V PT0100280 PT0100280-M12V PT0100280-T46V E/GR 0280 A 55/9775 E/GR-0280-A-55/9775 E/GR0280A-55/9775 EGR 0280 A 55/9775
NPS/L 20 YBV 20 15,1 2,2 YBV 20 15.1 2.2 GER/L 0200 PG4600200-T46V PT0000200 PT0000200-M12V PT0000200-T46V 02A00 0200 E 24 N 02A00-0200-E-24-N 02A00-0200-E24N 02A000200E24N E/GR-L 0200 A 55/9775 E/GR-L-0200-A-55/9775 E/GR-L0200A-55/9775 EGR/L 0200 A 55/9775
NPS/L 18 YB 18 13,1 2,2 YB 18 13.1 2.2 GER/L 0180 02A00 0180 A 24 N 02A00-0180-A-24-N 02A00-0180-A24N 02A000180A24N E/GR-L 0180 A 55/4470 E/GR-L-0180-A-55/4470 E/GR-L0180A-55/4470 EGR/L 0180 A 55/4470 PG4600180-T46N PT0000180 PT0000180-M12N PT0000180-T46N
NPS 22 YBV 22 14,5 3,2 YBV 22 14.5 3.2 GER 0220 02A01 0220 E 24 N 02A01-0220-E-24-N 02A01-0220-E24N 02A010220E24N PG4400220-T46V PT0100220 PT0100220-M12V PT0100220-T46V E/GR 0220 A 55/9775 E/GR-0220-A-55/9775 E/GR0220A-55/9775 EGR 0220 A 55/9775
NPS 18 YBV 18 10,5 3,2 YBV 18 10.5 3.2 GER 0180 02A01 0180 E 24 N 02A01-0180-E-24-N 02A01-0180-E24N 02A010180E24N PG4400180-T46V PT0100180 PT0100180-M12V PT0100180-T46V E/GR 0180 A 55/9775 E/GR-0180-A-55/9775 E/GR0180A-55/9775 EGR 0180 A 55/9775
NPS 26 YB 26 18,5 3,2 YB 26 18.5 3.2 GER 0260 02A01 0260 A 24 N 02A01-0260-A-24-N 02A01-0260-A24N 02A010260A24N PG4400260-T46N PT0100260 PT0100260-M12N PT0100260-T46N E/GR 0260 A 55/4470 E/GR-0260-A-55/4470 E/GR0260A-55/4470 EGR 0260 A 55/4470
NPS/L 15 YB 15 10,1 2,2 YB 15 10.1 2.2 GER/L 0150 02A00 0150 A 24 N 02A00-0150-A-24-N 02A00-0150-A24N 02A000150A24N E/GR-L 0150 A 55/4470 E/GR-L-0150-A-55/4470 E/GR-L0150A-55/4470 EGR/L 0150 A 55/4470 PG4600150-T46N PT0000150 PT0000150-M12N PT0000150-T46N
NPS 13 YB 13 8,1 2,2 YB 13 8.1 2.2 GER 0130 02A00 0130 A 24 N 02A00-0130-A-24-N 02A00-0130-A24N 02A000130A24N E/GR 0130 A 55/4470 E/GR-0130-A-55/4470 E/GR0130A-55/4470 EGR 0130 A 55/4470 PG4400130-T46N PT0000130 PT0000130-M12N PT0000130-T46N
NPS/L 25 YB 25 20,1 2,2 YB 25 20.1 2.2 GER/L 0250 PG4600250-T46N PT0000250 PT0000250-M12N PT0000250-T46N 02A00 0250 A 24 N 02A00-0250-A-24-N 02A00-0250-A24N 02A000250A24N E/GR-L 0250 A 55/4470 E/GR-L-0250-A-55/4470 E/GR-L0250A-55/4470 EGR/L 0250 A 55/4470
NPS/L 30 YBV 30 25,1 2,2 YBV 30 25.1 2.2 GER/L 0300 PG4600300-T46V PT0000300 PT0000300-M12V PT0000300-T46V E/GR-L 0300 A 55/9775 E/GR-L-0300-A-55/9775 E/GR-L0300A-55/9775 EGR/L 0300 A 55/9775 02A00 0300 E 24 N 02A00-0300-E-24-N 02A00-0300-E24N 02A000300E24N
NPS/L 22 YB 22 17,1 2,2 YB 22 17.1 2.2 GER/L 0220 PG4600220-T46N PT0000220 PT0000220-M12N PT0000220-T46N 02A00 0220 A 24 N 02A00-0220-A-24-N 02A00-0220-A24N 02A000220A24N E/GR-L 0220 A 55/4470 E/GR-L-0220-A-55/4470 E/GR-L0220A-55/4470 EGR/L 0220 A 55/4470
NPS 15 YB 15 7,5 3,2 YB 15 7.5 3.2 GER 0150 02A01 0150 A 24 N 02A01-0150-A-24-N 02A01-0150-A24N 02A010150A24N E/GR 0150 A 55/4470 E/GR-0150-A-55/4470 E/GR0150A-55/4470 EGR 0150 A 55/4470 PG4400150-T46N PT0100150 PT0100150-M12N PT0100150-T46N
NPS 20 YB 20 12,5 3,2 YB 20 12.5 3.2 GER 0200 02A01 0200 A 24 N 02A01-0200-A-24-N 02A01-0200-A24N 02A010200A24N PG4400200-T46N PT0100200 PT0100200-M12N PT0100200-T46N E/GR 0200 A 55/4470 E/GR-0200-A-55/4470 E/GR0200A-55/4470 EGR 0200 A 55/4470
NPS 27 YB 27 19,5 3,2 YB 27 19.5 3.2 GER 0270 02A01 0270 A 24 N 02A01-0270-A-24-N 02A01-0270-A24N 02A010270A24N PG4400270-T46N PT0100270 PT0100270-M12N PT0100270-T46N E/GR 0270 A 55/4470 E/GR-0270-A-55/4470 E/GR0270A-55/4470 EGR 0270 A 55/4470
NPS/L 30 YB 30 25,1 2,2 YB 30 25.1 2.2 GER/L 0300 PG4600300-T46N PT0000300 PT0000300-M12N PT0000300-T46N E/GR-L 0300 A 55/4470 E/GR-L-0300-A-55/4470 E/GR-L0300A-55/4470 EGR/L 0300 A 55/4470 02A00 0300 A 24 N 02A00-0300-A-24-N 02A00-0300-A24N 02A000300A24N
NPS 12 YB 12 7,1 2,2 YB 12 7.1 2.2 GER 0120 02A00 0120 A 24 N 02A00-0120-A-24-N 02A00-0120-A24N 02A000120A24N E/GR 0120 A 55/4470 E/GR-0120-A-55/4470 E/GR0120A-55/4470 EGR 0120 A 55/4470 PG4400120-T46N PT0000120 PT0000120-M12N PT0000120-T46N
NPS 30 YBV 30 22,5 3,2 YBV 30 22.5 3.2 GER 0300 02A01 0300 E 24 N 02A01-0300-E-24-N 02A01-0300-E24N 02A010300E24N PG4400300-T46V PT0100300 PT0100300-M12V PT0100300-T46V E/GR 0300 A 55/9775 E/GR-0300-A-55/9775 E/GR0300A-55/9775 EGR 0300 A 55/9775
NPS/P 25 YBV 25 14 4,2 YBV 25 14 4.2 GER/P 0250 PG4200250-T46V PT0200250 PT0200250-M12V PT0200250-T46V E/GR-P 0250 A 55/9775 E/GR-P-0250-A-55/9775 E/GR-P0250A-55/9775 EGR/P 0250 A 55/9775 02A02 0250 E 24 N 02A02-0250-E-24-N 02A02-0250-E24N 02A020250E24N
NPS 25 YBV 25 17,5 3,2 YBV 25 17.5 3.2 GER 0250 02A01 0250 E 24 N 02A01-0250-E-24-N 02A01-0250-E24N 02A010250E24N PG4400250-T46V PT0100250 PT0100250-M12V PT0100250-T46V E/GR 0250 A 55/9775 E/GR-0250-A-55/9775 E/GR0250A-55/9775 EGR 0250 A 55/9775
NPS/L 16 YB 16 11,1 2,2 YB 16 11.1 2.2 GER/L 0160 02A00 0160 A 24 N 02A00-0160-A-24-N 02A00-0160-A24N 02A000160A24N E/GR-L 0160 A 55/4470 E/GR-L-0160-A-55/4470 E/GR-L0160A-55/4470 EGR/L 0160 A 55/4470 PG4600160-T46N PT0000160 PT0000160-M12N PT0000160-T46N
NPS 24 YB 24 16,5 3,2 YB 24 16.5 3.2 GER 0240 02A01 0240 A 24 N 02A01-0240-A-24-N 02A01-0240-A24N 02A010240A24N PG4400240-T46N PT0100240 PT0100240-M12N PT0100240-T46N E/GR 0240 A 55/4470 E/GR-0240-A-55/4470 E/GR0240A-55/4470 EGR 0240 A 55/4470
NPS/L 15 YBV 15 10,1 2,2 YBV 15 10.1 2.2 GER/L 0150 02A00 0150 E 24 N 02A00-0150-E-24-N 02A00-0150-E24N 02A000150E24N E/GR-L 0150 A 55/9775 E/GR-L-0150-A-55/9775 E/GR-L0150A-55/9775 EGR/L 0150 A 55/9775 PG4600150-T46V PT0000150 PT0000150-M12V PT0000150-T46V
NPS 13 YBV 13 8,1 2,2 YBV 13 8.1 2.2 GER 0130 02A00 0130 E 24 N 02A00-0130-E-24-N 02A00-0130-E24N 02A000130E24N E/GR 0130 A 55/9775 E/GR-0130-A-55/9775 E/GR0130A-55/9775 EGR 0130 A 55/9775 PG4400130-T46V PT0000130 PT0000130-M12V PT0000130-T46V
NPS/L 18 YBV 18 13,1 2,2 YBV 18 13.1 2.2 GER/L 0180 02A00 0180 E 24 N 02A00-0180-E-24-N 02A00-0180-E24N 02A000180E24N E/GR-L 0180 A 55/9775 E/GR-L-0180-A-55/9775 E/GR-L0180A-55/9775 EGR/L 0180 A 55/9775 PG4600180-T46V PT0000180 PT0000180-M12V PT0000180-T46V
NPS 8 YBV 8 3,1 2,2 YBV 8 3.1 2.2 GER 0080 02A00 0080 E 24 N 02A00-0080-E-24-N 02A00-0080-E24N 02A000080E24N E/GR 0080 A 55/9775 E/GR-0080-A-55/9775 E/GR0080A-55/9775 EGR 0080 A 55/9775 PG4400080-T46V PT0000080 PT0000080-M12V PT0000080-T46V
NPS/L 28 YBV 28 23,1 2,2 YBV 28 23.1 2.2 GER/L 0280 PG4600280-T46V PT0000280 PT0000280-M12V PT0000280-T46V 02A00 0280 E 24 N 02A00-0280-E-24-N 02A00-0280-E24N 02A000280E24N E/GR-L 0280 A 55/9775 E/GR-L-0280-A-55/9775 E/GR-L0280A-55/9775 EGR/L 0280 A 55/9775
NPS 16 YBV 16 8,5 3,2 YBV 16 8.5 3.2 GER 0160 02A01 0160 E 24 N 02A01-0160-E-24-N 02A01-0160-E24N 02A010160E24N PG4400160-T46V PT0100160 PT0100160-M12V PT0100160-T46V E/GR 0160 A 55/9775 E/GR-0160-A-55/9775 E/GR0160A-55/9775 EGR 0160 A 55/9775
NPS/L 22 YBV 22 17,1 2,2 YBV 22 17.1 2.2 GER/L 0220 PG4600220-T46V PT0000220 PT0000220-M12V PT0000220-T46V 02A00 0220 E 24 N 02A00-0220-E-24-N 02A00-0220-E24N 02A000220E24N E/GR-L 0220 A 55/9775 E/GR-L-0220-A-55/9775 E/GR-L0220A-55/9775 EGR/L 0220 A 55/9775
NPS 8 YB 8 3,1 2,2 YB 8 3.1 2.2 GER 0080 02A00 0080 A 24 N 02A00-0080-A-24-N 02A00-0080-A24N 02A000080A24N E/GR 0080 A 55/4470 E/GR-0080-A-55/4470 E/GR0080A-55/4470 EGR 0080 A 55/4470 PG4400080-T46N PT0000080 PT0000080-M12N PT0000080-T46N
NPS 10 YBV 10 5,1 2,2 YBV 10 5.1 2.2 GER 0100 02A00 0100 E 24 N 02A00-0100-E-24-N 02A00-0100-E24N 02A000100E24N E/GR 0100 A 55/9775 E/GR-0100-A-55/9775 E/GR0100A-55/9775 EGR 0100 A 55/9775 PG4400100-T46V PT0000100 PT0000100-M12V PT0000100-T46V
NPS 26 YBV 26 18,5 3,2 YBV 26 18.5 3.2 GER 0260 02A01 0260 E 24 N 02A01-0260-E-24-N 02A01-0260-E24N 02A010260E24N PG4400260-T46V PT0100260 PT0100260-M12V PT0100260-T46V E/GR 0260 A 55/9775 E/GR-0260-A-55/9775 E/GR0260A-55/9775 EGR 0260 A 55/9775
NPS 18 YB 18 10,5 3,2 YB 18 10.5 3.2 GER 0180 02A01 0180 A 24 N 02A01-0180-A-24-N 02A01-0180-A24N 02A010180A24N PG4400180-T46N PT0100180 PT0100180-M12N PT0100180-T46N E/GR 0180 A 55/4470 E/GR-0180-A-55/4470 E/GR0180A-55/4470 EGR 0180 A 55/4470
NPS 28 YB 28 20,5 3,2 YB 28 20.5 3.2 GER 0280 02A01 0280 A 24 N 02A01-0280-A-24-N 02A01-0280-A24N 02A010280A24N PG4400280-T46N PT0100280 PT0100280-M12N PT0100280-T46N E/GR 0280 A 55/4470 E/GR-0280-A-55/4470 E/GR0280A-55/4470 EGR 0280 A 55/4470
NPS/L 25 YBV 25 20,1 2,2 YBV 25 20.1 2.2 GER/L 0250 PG4600250-T46V PT0000250 PT0000250-M12V PT0000250-T46V 02A00 0250 E 24 N 02A00-0250-E-24-N 02A00-0250-E24N 02A000250E24N E/GR-L 0250 A 55/9775 E/GR-L-0250-A-55/9775 E/GR-L0250A-55/9775 EGR/L 0250 A 55/9775
NPS 10 YB 10 5,1 2,2 YB 10 5.1 2.2 GER 0100 02A00 0100 A 24 N 02A00-0100-A-24-N 02A00-0100-A24N 02A000100A24N E/GR 0100 A 55/4470 E/GR-0100-A-55/4470 E/GR0100A-55/4470 EGR 0100 A 55/4470 PG4400100-T46N PT0000100 PT0000100-M12N PT0000100-T46N
NPS 25 YB 25 17,5 3,2 YB 25 17.5 3.2 GER 0250 02A01 0250 A 24 N 02A01-0250-A-24-N 02A01-0250-A24N 02A010250A24N PG4400250-T46N PT0100250 PT0100250-M12N PT0100250-T46N E/GR 0250 A 55/4470 E/GR-0250-A-55/4470 E/GR0250A-55/4470 EGR 0250 A 55/4470
NPS 30 YB 30 22,5 3,2 YB 30 22.5 3.2 GER 0300 02A01 0300 A 24 N 02A01-0300-A-24-N 02A01-0300-A24N 02A010300A24N PG4400300-T46N PT0100300 PT0100300-M12N PT0100300-T46N E/GR 0300 A 55/4470 E/GR-0300-A-55/4470 E/GR0300A-55/4470 EGR 0300 A 55/4470
NPS 27 YBV 27 19,5 3,2 YBV 27 19.5 3.2 GER 0270 02A01 0270 E 24 N 02A01-0270-E-24-N 02A01-0270-E24N 02A010270E24N PG4400270-T46V PT0100270 PT0100270-M12V PT0100270-T46V E/GR 0270 A 55/9775 E/GR-0270-A-55/9775 E/GR0270A-55/9775 EGR 0270 A 55/9775
NPS/L 16 YBV 16 11,1 2,2 YBV 16 11.1 2.2 GER/L 0160 02A00 0160 E 24 N 02A00-0160-E-24-N 02A00-0160-E24N 02A000160E24N E/GR-L 0160 A 55/9775 E/GR-L-0160-A-55/9775 E/GR-L0160A-55/9775 EGR/L 0160 A 55/9775 PG4600160-T46V PT0000160 PT0000160-M12V PT0000160-T46V
NPS/P 25 YB 25 14 4,2 YB 25 14 4.2 GER/P 0250 PG4200250-T46N PT0200250 PT0200250-M12N PT0200250-T46N E/GR-P 0250 A 55/4470 E/GR-P-0250-A-55/4470 E/GR-P0250A-55/4470 EGR/P 0250 A 55/4470 02A02 0250 A 24 N 02A02-0250-A-24-N 02A02-0250-A24N 02A020250A24N
NPS/L 20 YB 20 15,1 2,2 YB 20 15.1 2.2 GER/L 0200 PG4600200-T46N PT0000200 PT0000200-M12N PT0000200-T46N 02A00 0200 A 24 N 02A00-0200-A-24-N 02A00-0200-A24N 02A000200A24N E/GR-L 0200 A 55/4470 E/GR-L-0200-A-55/4470 E/GR-L0200A-55/4470 EGR/L 0200 A 55/4470
NPS 24 YBV 24 16,5 3,2 YBV 24 16.5 3.2 GER 0240 02A01 0240 E 24 N 02A01-0240-E-24-N 02A01-0240-E24N 02A010240E24N PG4400240-T46V PT0100240 PT0100240-M12V PT0100240-T46V E/GR 0240 A 55/9775 E/GR-0240-A-55/9775 E/GR0240A-55/9775 EGR 0240 A 55/9775
NPS 20 YBV 20 12,5 3,2 YBV 20 12.5 3.2 GER 0200 02A01 0200 E 24 N 02A01-0200-E-24-N 02A01-0200-E24N 02A010200E24N PG4400200-T46V PT0100200 PT0100200-M12V PT0100200-T46V E/GR 0200 A 55/9775 E/GR-0200-A-55/9775 E/GR0200A-55/9775 EGR 0200 A 55/9775
NPS 22 YB 22 14,5 3,2 YB 22 14.5 3.2 GER 0220 02A01 0220 A 24 N 02A01-0220-A-24-N 02A01-0220-A24N 02A010220A24N PG4400220-T46N PT0100220 PT0100220-M12N PT0100220-T46N E/GR 0220 A 55/4470 E/GR-0220-A-55/4470 E/GR0220A-55/4470 EGR 0220 A 55/4470
NPS 15 YBV 15 7,5 3,2 YBV 15 7.5 3.2 GER 0150 02A01 0150 E 24 N 02A01-0150-E-24-N 02A01-0150-E24N 02A010150E24N E/GR 0150 A 55/9775 E/GR-0150-A-55/9775 E/GR0150A-55/9775 EGR 0150 A 55/9775 PG4400150-T46V PT0100150 PT0100150-M12V PT0100150-T46V
NPS 12 YBV 12 7,1 2,2 YBV 12 7.1 2.2 GER 0120 02A00 0120 E 24 N 02A00-0120-E-24-N 02A00-0120-E24N 02A000120E24N E/GR 0120 A 55/9775 E/GR-0120-A-55/9775 E/GR0120A-55/9775 EGR 0120 A 55/9775 PG4400120-T46V PT0000120 PT0000120-M12V PT0000120-T46V
NPS 14 YB 14 9,1 2,2 YB 14 9.1 2.2 GER 0140 02A00 0140 A 24 N 02A00-0140-A-24-N 02A00-0140-A24N 02A000140A24N E/GR 0140 A 55/4470 E/GR-0140-A-55/4470 E/GR0140A-55/4470 EGR 0140 A 55/4470 PG4400140-T46N PT0000140 PT0000140-M12N PT0000140-T46N
Cerca per codice
| Descrizione | Ø d | Ø D | L | Materiale | |
|---|---|---|---|---|---|
| ETS 8 B40 BN | 3,10 | 8,00 | 2,20 | PTFE+Bz/NBR | |
| ETS 8 B40 VT | 3,10 | 8,00 | 2,20 | PTFE+Bz/FKM | |
| ETS 10 B40 BN | 5,10 | 10,00 | 2,20 | PTFE+Bz/NBR | |
| ETS 10 B40 VT | 5,10 | 10,00 | 2,20 | PTFE+Bz/FKM | |
| ETS 12 B40 BN | 7,10 | 12,00 | 2,20 | PTFE+Bz/NBR | |
| ETS 12 B40 VT | 7,10 | 12,00 | 2,20 | PTFE+Bz/FKM | |
| ETS 13 B40 BN | 8,10 | 13,00 | 2,20 | PTFE+Bz/NBR | |
| ETS 13 B40 VT | 8,10 | 13,00 | 2,20 | PTFE+Bz/FKM | |
| ETS 14 B40 BN | 9,10 | 14,00 | 2,20 | PTFE+Bz/NBR | |
| ETS 14 B40 VT | 9,10 | 14,00 | 2,20 | PTFE+Bz/FKM | |
| ETS/L 15 B40 BN | 10,10 | 15,00 | 2,20 | PTFE+Bz/NBR | |
| ETS/L 15 B40 VT | 10,10 | 15,00 | 2,20 | PTFE+Bz/FKM | |
| ETS 15 B40 BN | 7,50 | 15,00 | 3,20 | PTFE+Bz/NBR | |
| ETS 15 B40 VT | 7,50 | 15,00 | 3,20 | PTFE+Bz/FKM | |
| ETS/L 16 B40 BN | 11,10 | 16,00 | 2,20 | PTFE+Bz/NBR | |
| ETS/L 16 B40 VT | 11,10 | 16,00 | 2,20 | PTFE+Bz/FKM | |
| ETS 16 B40 BN | 8,50 | 16,00 | 3,20 | PTFE+Bz/NBR | |
| ETS 16 B40 VT | 8,50 | 16,00 | 3,20 | PTFE+Bz/FKM | |
| ETS/L 18 B40 BN | 13,10 | 18,00 | 2,20 | PTFE+Bz/NBR | |
| ETS/L 18 B40 VT | 13,10 | 18,00 | 2,20 | PTFE+Bz/FKM | |
| ETS 18 B40 BN | 10,50 | 18,00 | 3,20 | PTFE+Bz/NBR | |
| ETS 18 B40 VT | 10,50 | 18,00 | 3,20 | PTFE+Bz/FKM | |
| ETS/L 20 B40 BN | 15,10 | 20,00 | 2,20 | PTFE+Bz/NBR | |
| ETS/L 20 B40 VT | 15,10 | 20,00 | 2,20 | PTFE+Bz/FKM | |
| ETS 20 B40 BN | 12,50 | 20,00 | 3,20 | PTFE+Bz/NBR | |
| ETS 20 B40 VT | 12,50 | 20,00 | 3,20 | PTFE+Bz/FKM | |
| ETS/L 22 B40 BN | 17,10 | 22,00 | 2,20 | PTFE+Bz/NBR | |
| ETS/L 22 B40 VT | 17,10 | 22,00 | 2,20 | PTFE+Bz/FKM | |
| ETS 22 B40 BN | 14,50 | 22,00 | 3,20 | PTFE+Bz/NBR | |
| ETS 22 B40 VT | 14,50 | 22,00 | 3,20 | PTFE+Bz/FKM | |
| ETS 24 B40 BN | 16,50 | 24,00 | 3,20 | PTFE+Bz/NBR | |
| ETS 24 B40 VT | 16,50 | 24,00 | 3,20 | PTFE+Bz/FKM | |
| ETS/L 25 B40 BN | 20,10 | 25,00 | 2,20 | PTFE+Bz/NBR | |
| ETS/L 25 B40 VT | 20,10 | 25,00 | 2,20 | PTFE+Bz/FKM | |
| ETS 25 B40 BN | 17,50 | 25,00 | 3,20 | PTFE+Bz/NBR | |
| ETS 25 B40 VT | 17,50 | 25,00 | 3,20 | PTFE+Bz/FKM | |
| ETS/P 25 B40 BN | 14,00 | 25,00 | 4,20 | PTFE+Bz/NBR | |
| ETS/P 25 B40 VT | 14,00 | 25,00 | 4,20 | PTFE+Bz/FKM | |
| ETS 26 B40 BN | 18,50 | 26,00 | 3,20 | PTFE+Bz/NBR | |
| ETS 26 B40 VT | 18,50 | 26,00 | 3,20 | PTFE+Bz/FKM | |
| ETS 27 B40 BN | 19,50 | 27,00 | 3,20 | PTFE+Bz/NBR | |
| ETS 27 B40 VT | 19,50 | 27,00 | 3,20 | PTFE+Bz/FKM | |
| ETS/L 28 B40 BN | 23,10 | 28,00 | 2,20 | PTFE+Bz/NBR | |
| ETS/L 28 B40 VT | 23,10 | 28,00 | 2,20 | PTFE+Bz/FKM | |
| ETS 28 B40 BN | 20,50 | 28,00 | 3,20 | PTFE+Bz/NBR | |
| ETS 28 B40 VT | 20,50 | 28,00 | 3,20 | PTFE+Bz/FKM | |
| ETS/L 30 B40 BN | 25,10 | 30,00 | 2,20 | PTFE+Bz/NBR | |
| ETS/L 30 B40 VT | 25,10 | 30,00 | 2,20 | PTFE+Bz/FKM | |
| ETS 30 B40 BN | 22,50 | 30,00 | 3,20 | PTFE+Bz/NBR | |
| ETS 30 B40 VT | 22,50 | 30,00 | 3,20 | PTFE+Bz/FKM |
