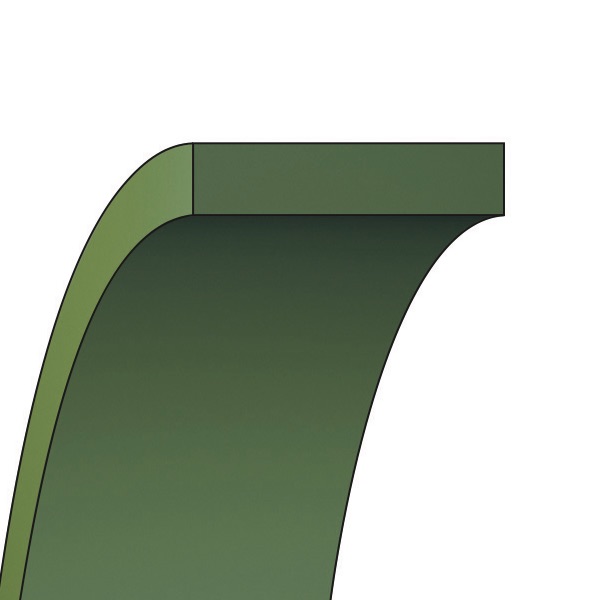

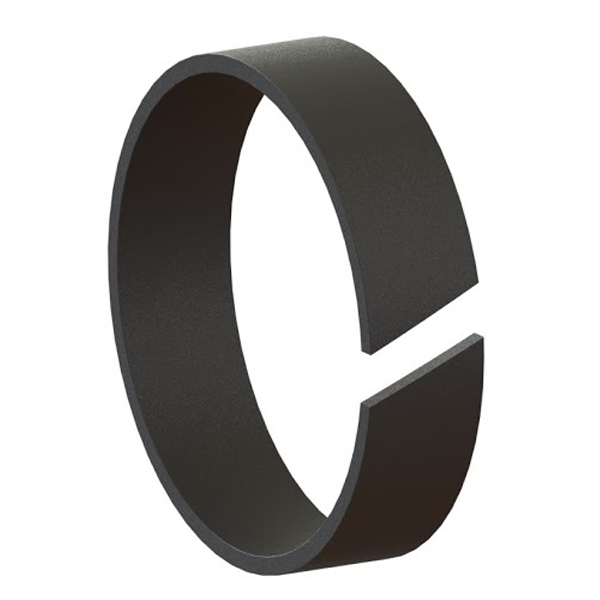

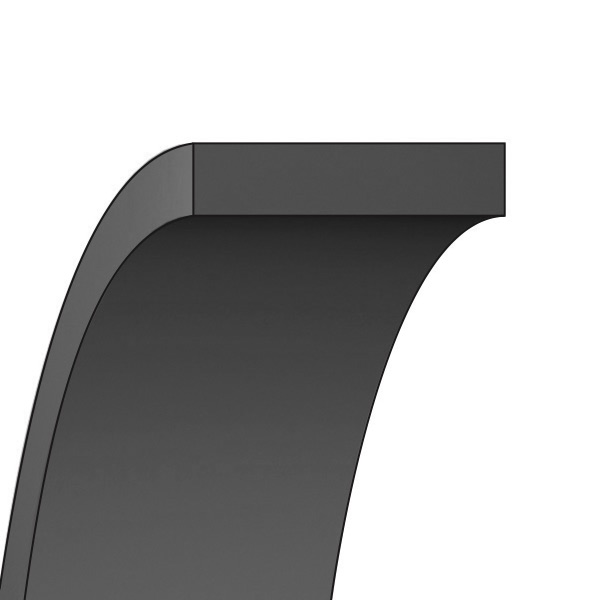

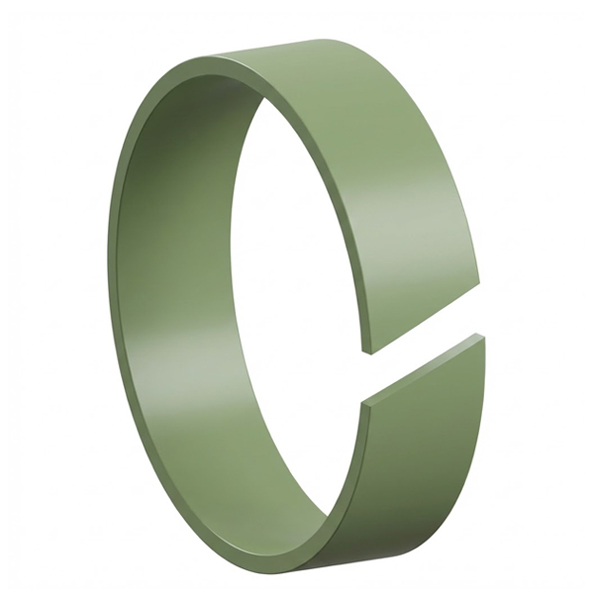

ATS-NAnello guida
Anelli guida per pistoni e steli, evitano il contatto metallo/metallo e svolgono la funzione di guida molto precisa, sopportando i carichi radiali. Le caratteristiche principali sono: buona sopportabilità di carico, autolubrificazione, basso attrito, assenza di Stick-slip ed eliminazione dei fenomeni di grippaggio. Fornibile anche in bobine. Disponibile in diversi tipi di Compound base PTFE a seconda delle applicazioni.
Caratteristiche
- Temperatura: da -60 a 200 °C
- Velocità massima: 15 m/s
- Carico radiale massimo: 9 N/mm2
Utilizzo
Questo prodotto è intercambiabile con:
SLYDRING - TURCITE-A - TEF SEAL - TF - T46 - T47 - T51 - M12 - GRB - GRM - 81A - 82A - 24 - 29 - TEFSEAL - SLYDERING - KZT
GRC 10 12 3,2 GRC 10 12 3.2 GRC 10x12x3,2 GRC 10x12x3.2 E/GT 10032-12 44A E/GT-10032-12-44A I/GT 10032-10 44A I/GT-10032-10-44A
GRB 8,9 12 4,0 GRB 8,9x12x4,0 GRB 8.9 12 4.0 GRB 8.9x12x4.0 GP4300120-M12 GP4300120-T47 GR4300089-M12 GR4300089-T47
GRC 13 16 3,2 GRC 13 16 3.2 GRC 13x16x3,2 GRC 13x16x3.2 GP2200160-T51 GR22130-T51 E/GT 15032-16 44A E/GT-15032-16-44A I/GT 15032-13 44A I/GT-15032-13-44A
GRC 8,9 12 4,0 GRC 8,9x12x4,0 GRC 8.9 12 4.0 GRC 8.9x12x4.0 GP4300120-T51 GR4300089-T51
GRC 11,9 15 4,0 GRC 11,9x15x4,0 GRC 11.9 15 4.0 GRC 11.9x15x4.0 GP4300150-T51 GR4300119-T51
GRC 11 14 3,2 GRC 11 14 3.2 GRC 11x14x3,2 GRC 11x14x3.2 GP2200140-T51 GR22110-T51 E/GT 15032-14 44A E/GT-15032-14-44A I/GT 15032-11 44A I/GT-15032-11-44A
GRC 9 11 3,2 GRC 9 11 3.2 GRC 9x11x3,2 GRC 9x11x3.2 E/GT 10032-11 44A E/GT-10032-11-44A I/GT 10032-9 44A I/GT-10032-9-44A
GRB 8 11 3,2 GRB 8 11 3.2 GRB 8x11x3,2 GRB 8x11x3.2 GP2200110-M12 GP2200110-T47 GR2280-M12 GR2280-T47 E/GT 15032-11 55A E/GT-15032-11-55A I/GT 15032-8 55A I/GT-15032-8-55A
GRB 11,9 15 4,0 GRB 11,9x15x4,0 GRB 11.9 15 4.0 GRB 11.9x15x4.0 GP4300150-M12 GP4300150-T47 GR4300119-M12 GR4300119-T47
GRB 13 16 5,6 GRB 13 16 5.6 GRB 13x16x5,6 GRB 13x16x5.6 E/GT 15056-16 55A E/GT-15056-16-55A I/GT 15056-13 55A I/GT-15056-13-55A
GRB 10 13,1 4,0 GRB 10 13.1 4.0 GRB 10x13,1x4,0 GRB 10x13.1x4.0 GP4300131-M12 GP4300131-T47 GR4300100-M12 GR4300100-T47
GRB 12 15 5,1 GRB 12 15 5.1 GRB 12x15x5,1 GRB 12x15x5.1 E/GT 15051-15 55A E/GT-15051-15-55A I/GT 15051-12 55A I/GT-15051-12-55A
GRC 9 12,1 2,5 GRC 9 12.1 2.5 GRC 9x12,1x2,5 GRC 9x12.1x2.5 GP4100121-T51 GR4190-T51
GRC 13 16,1 2,5 GRC 13 16.1 2.5 GRC 13x16,1x2,5 GRC 13x16.1x2.5 GP4100161-T51 GR41130-T51
GRB 13 16 4,2 GRB 13 16 4.2 GRB 13x16x4,2 GRB 13x16x4.2 E/GT 15042-16 55A E/GT-15042-16-55A I/GT 15042-13 55A I/GT-15042-13-55A
GRB 14 16 10 GRB 14x16x10 E/GT 10100-16 55A E/GT-10100-16-55A I/GT 10100-14 55A I/GT-10100-14-55A
GRC 13 15 3,2 GRC 13 15 3.2 GRC 13x15x3,2 GRC 13x15x3.2 E/GT 10032-15 44A E/GT-10032-15-44A I/GT 10032-13 44A I/GT-10032-13-44A
GRC 14 16 3,2 GRC 14 16 3.2 GRC 14x16x3,2 GRC 14x16x3.2 I/GT 10032-14 44A I/GT-10032-14-44A E/GT 10032-16 44A E/GT-10032-16-44A
GRC 10 13,1 2,5 GRC 10 13.1 2.5 GRC 10x13,1x2,5 GRC 10x13.1x2.5 GP4100131-T51 GR41100-T51
GRC 11 13 3,2 GRC 11 13 3.2 GRC 11x13x3,2 GRC 11x13x3.2 E/GT 10032-13 44A E/GT-10032-13-44A I/GT 10032-11 44A I/GT-10032-11-44A
GRC 12 15,1 2,5 GRC 12 15.1 2.5 GRC 12x15,1x2,5 GRC 12x15.1x2.5 GP4100151-T51 GR41120-T51
GRC 8 11 3,2 GRC 8 11 3.2 GRC 8x11x3,2 GRC 8x11x3.2 GP2200110-T51 GR2280-T51 E/GT 15032-11 44A E/GT-15032-11-44A I/GT 15032-8 44A I/GT-15032-8-44A
GRC 12 14 3,2 GRC 12 14 3.2 GRC 12x14x3,2 GRC 12x14x3.2 E/GT 10032-14 44A E/GT-10032-14-44A I/GT 10032-12 44A I/GT-10032-12-44A
GRC 14 17 3,2 GRC 14 17 3.2 GRC 14x17x3,2 GRC 14x17x3.2 GP2200170-T51 GR22140-T51 E/GT 15032-17 44A E/GT-15032-17-44A I/GT 15032-14 44A I/GT-15032-14-44A
GRC 12,9 16 4,0 GRC 12,9x16x4,0 GRC 12.9 16 4.0 GRC 12.9x16x4.0 GP4300160-T51 GR4300129-T51
GRC 9 12 3,2 GRC 9 12 3.2 GRC 9x12x3,2 GRC 9x12x3.2 GP2200120-T51 GR2290-T51 E/GT 15032-12 44A E/GT-15032-12-44A I/GT 15032-9 44A I/GT-15032-9-44A
GRC 10,9 14 4,0 GRC 10,9x14x4,0 GRC 10.9 14 4.0 GRC 10.9x14x4.0 GP4300140-T51 GR4300109-T51
GRB 14 17 3,2 GRB 14 17 3.2 GRB 14x17x3,2 GRB 14x17x3.2 GP2200170-M12 GP2200170-T47 GR22140-M12 GR22140-T47 E/GT 15032-17 55A E/GT-15032-17-55A I/GT 15032-14 55A I/GT-15032-14-55A
GRB 12,9 16 4,0 GRB 12,9x16x4,0 GRB 12.9 16 4.0 GRB 12.9x16x4.0 GP4300160-M12 GP4300160-T47 GR4300129-M12 GR4300129-T47
GRB 10,9 14 4,0 GRB 10,9x14x4,0 GRB 10.9 14 4.0 GRB 10.9x14x4.0 GP4300140-M12 GP4300140-T47 GR4300109-M12 GR4300109-T47
GRB 12 15 5,6 GRB 12 15 5.6 GRB 12x15x5,6 GRB 12x15x5.6 E/GT 15056-15 55A E/GT-15056-15-55A I/GT 15056-12 55A I/GT-15056-12-55A
GRB 12 15 4,2 GRB 12 15 4.2 GRB 12x15x4,2 GRB 12x15x4.2 E/GT 15042-15 55A E/GT-15042-15-55A I/GT 15042-12 55A I/GT-15042-12-55A
GRC 8 10 3,2 GRC 8 10 3.2 GRC 8x10x3,2 GRC 8x10x3.2 E/GT 10032-10 44A E/GT-10032-10-44A I/GT 10032-8 44A I/GT-10032-8-44A
GRB 13 15 10 GRB 13x15x10 E/GT 10100-15 55A E/GT-10100-15-55A I/GT 10100-13 55A I/GT-10100-13-55A
GRC 12 15 3,2 GRC 12 15 3.2 GRC 12x15x3,2 GRC 12x15x3.2 GP2200150-T51 GR22120-T51 E/GT 15032-15 44A E/GT-15032-15-44A I/GT 15032-12 44A I/GT-15032-12-44A
GRB 7 10 3,2 GRB 7 10 3.2 GRB 7x10x3,2 GRB 7x10x3.2 GP2200100-M12 GP2200100-T47 GR2270-M12 GR2270-T47 E/GT 15032-10 55A E/GT-15032-10-55A I/GT 15032-7 55A I/GT-15032-7-55A
GRC 8 11,1 2,5 GRC 8 11.1 2.5 GRC 8x11,1x2,5 GRC 8x11.1x2.5 GP4100111-T51 GR4180-T51
GRB 13 16 5,1 GRB 13 16 5.1 GRB 13x16x5,1 GRB 13x16x5.1 E/GT 15051-16 55A E/GT-15051-16-55A I/GT 15051-13 55A I/GT-15051-13-55A
GRB 9 12 3,2 GRB 9 12 3.2 GRB 9x12x3,2 GRB 9x12x3.2 GP2200120-M12 GP2200120-T47 GR2290-M12 GR2290-T47 E/GT 15032-12 55A E/GT-15032-12-55A I/GT 15032-9 55A I/GT-15032-9-55A
GRC 10 13 3,2 GRC 10 13 3.2 GRC 10x13x3,2 GRC 10x13x3.2 GP2200130-T51 GR22100-T51 E/GT 15032-13 44A E/GT-15032-13-44A I/GT 15032-10 44A I/GT-15032-10-44A
GRB 10 13 3,2 GRB 10 13 3.2 GRB 10x13x3,2 GRB 10x13x3.2 GP2200130-M12 GP2200130-T47 GR22100-M12 GR22100-T47 E/GT 15032-13 55A E/GT-15032-13-55A I/GT 15032-10 55A I/GT-15032-10-55A
GRC 10 13,1 4,0 GRC 10 13.1 4.0 GRC 10x13,1x4,0 GRC 10x13.1x4.0 GP4300131-T51 GR4300100-T51
GRB 12 15,1 4,0 GRB 12 15.1 4.0 GRB 12x15,1x4,0 GRB 12x15.1x4.0 GP4300151-M12 GP4300151-T47 GR4300120-M12 GR4300120-T47
GRC 12 15,1 4,0 GRC 12 15.1 4.0 GRC 12x15,1x4,0 GRC 12x15.1x4.0 GP4300151-T51 GR4300120-T51
GRC 13 16,1 4,0 GRC 13 16.1 4.0 GRC 13x16,1x4,0 GRC 13x16.1x4.0 GP4300161-T51 GR4300130-T51
GRB 13 16,1 4,0 GRB 13 16.1 4.0 GRB 13x16,1x4,0 GRB 13x16.1x4.0 GP4300161-M12 GP4300161-T47 GR4300130-M12 GR4300130-T47
GRB 13 16 3,2 GRB 13 16 3.2 GRB 13x16x3,2 GRB 13x16x3.2 GP2200160-M12 GP2200160-T47 GR22130-M12 GR22130-T47 E/GT 15032-16 55A E/GT-15032-16-55A I/GT 15032-13 55A I/GT-15032-13-55A
GRB 12 15 3,2 GRB 12 15 3.2 GRB 12x15x3,2 GRB 12x15x3.2 GP2200150-M12 GP2200150-T47 GR22120-M12 GR22120-T47 E/GT 15032-15 55A E/GT-15032-15-55A I/GT 15032-12 55A I/GT-15032-12-55A
GRB 5 8 3,2 GRB 5 8 3.2 GRB 5x8x3,2 GRB 5x8x3.2 GP2200080-M12 GP2200080-T47 GR2250-M12 GR2250-T47 E/GT 15032-8 55A E/GT-15032-8-55A I/GT 15032-5 55A I/GT-15032-5-55A
GRB 11 14 3,2 GRB 11 14 3.2 GRB 11x14x3,2 GRB 11x14x3.2 GP2200140-M12 GP2200140-T47 GR22110-M12 GR22110-T47 E/GT 15032-14 55A E/GT-15032-14-55A I/GT 15032-11 55A I/GT-15032-11-55A
Cerca per codice
| Descrizione | Ø d | Ø D | L | S | Materiale | |
|---|---|---|---|---|---|---|
| ATS-N 5x8x3,0 B40 A | 5,00 | 8,00 | 3,20 | 1,50 | PTFE+Bz | |
| ATS-N 7x10x3,0 B40 A | 7,00 | 10,00 | 3,20 | 1,50 | PTFE+Bz | |
| ATS-N 8x10x3,0 CGR A | 8,00 | 10,00 | 3,20 | 1,00 | PTFE+Carbon | |
| ATS-N 8x11x3,0 B40 A | 8,00 | 11,00 | 3,20 | 1,50 | PTFE+Bz | |
| ATS-N 8x11x3,0 CGR A | 8,00 | 11,00 | 3,20 | 1,50 | PTFE+Carbon | |
| ATS-N 8x11,1x2,3 CGR A | 8,00 | 11,10 | 2,50 | 1,55 | PTFE+Carbon | |
| ATS-N 8,9x12x3,8 B40 A | 8,90 | 12,00 | 4,00 | 1,55 | PTFE+Bz | |
| ATS-N 8,9x12x3,8 CGR A | 8,90 | 12,00 | 4,00 | 1,55 | PTFE+Carbon | |
| ATS-N 9x11x3,0 CGR A | 9,00 | 11,00 | 3,20 | 1,00 | PTFE+Carbon | |
| ATS-N 9x12x3,0 B40 A | 9,00 | 12,00 | 3,20 | 1,50 | PTFE+Bz | |
| ATS-N 9x12x3,0 CGR A | 9,00 | 12,00 | 3,20 | 1,50 | PTFE+Carbon | |
| ATS-N 9x12,1x2,3 CGR A | 9,00 | 12,10 | 2,50 | 1,55 | PTFE+Carbon | |
| ATS-N 10x12x3,0 CGR A | 10,00 | 12,00 | 3,20 | 1,00 | PTFE+Carbon | |
| ATS-N 10x13x3,0 B40 A | 10,00 | 13,00 | 3,20 | 1,50 | PTFE+Bz | |
| ATS-N 10x13x3,0 CGR A | 10,00 | 13,00 | 3,20 | 1,50 | PTFE+Carbon | |
| ATS-N 10x13,1x2,3 CGR A | 10,00 | 13,10 | 2,50 | 1,55 | PTFE+Carbon | |
| ATS-N 10x13,1x3,8 B40 A | 10,00 | 13,10 | 4,00 | 1,55 | PTFE+Bz | |
| ATS-N 10x13,1x3,8 CGR A | 10,00 | 13,10 | 4,00 | 1,55 | PTFE+Carbon | |
| ATS-N 10,9x14x3,8 B40 A | 10,90 | 14,00 | 4,00 | 1,55 | PTFE+Bz | |
| ATS-N 10,9x14x3,8 CGR A | 10,90 | 14,00 | 4,00 | 1,55 | PTFE+Carbon | |
| ATS-N 11x13x3,0 CGR A | 11,00 | 13,00 | 3,20 | 1,00 | PTFE+Carbon | |
| ATS-N 11x14x3,0 B40 A | 11,00 | 14,00 | 3,20 | 1,50 | PTFE+Bz | |
| ATS-N 11x14x3,0 CGR A | 11,00 | 14,00 | 3,20 | 1,50 | PTFE+Carbon | |
| ATS-N 11,9x15x3,8 B40 A | 11,90 | 15,00 | 4,00 | 1,55 | PTFE+Bz | |
| ATS-N 11,9x15x3,8 CGR A | 11,90 | 15,00 | 4,00 | 1,55 | PTFE+Carbon | |
| ATS-N 12x14x3,0 CGR A | 12,00 | 14,00 | 3,20 | 1,00 | PTFE+Carbon | |
| ATS-N 12x15x3,0 B40 A | 12,00 | 15,00 | 3,20 | 1,50 | PTFE+Bz | |
| ATS-N 12x15x3,0 CGR A | 12,00 | 15,00 | 3,20 | 1,50 | PTFE+Carbon | |
| ATS-N 12x15x4,0 B40 A | 12,00 | 15,00 | 4,20 | 1,50 | PTFE+Bz | |
| ATS-N 12x15x4,9 B40 A | 12,00 | 15,00 | 5,10 | 1,50 | PTFE+Bz | |
| ATS-N 12x15x5,4 B40 A | 12,00 | 15,00 | 5,60 | 1,50 | PTFE+Bz | |
| ATS-N 12x15,1x2,3 CGR A | 12,00 | 15,10 | 2,50 | 1,55 | PTFE+Carbon | |
| ATS-N 12x15,1x3,8 B40 A | 12,00 | 15,10 | 4,00 | 1,55 | PTFE+Bz | |
| ATS-N 12x15,1x3,8 CGR A | 12,00 | 15,10 | 4,00 | 1,55 | PTFE+Carbon | |
| ATS-N 12,9x16x3,8 B40 A | 12,90 | 16,00 | 4,00 | 1,55 | PTFE+Bz | |
| ATS-N 12,9x16x3,8 CGR A | 12,90 | 16,00 | 4,00 | 1,55 | PTFE+Carbon | |
| ATS-N 13x15x3,0 CGR A | 13,00 | 15,00 | 3,20 | 1,00 | PTFE+Carbon | |
| ATS-N 13x15x9,8 B40 A | 13,00 | 15,00 | 10,00 | 1,00 | PTFE+Bz | |
| ATS-N 13x16x3,0 B40 A | 13,00 | 16,00 | 3,20 | 1,50 | PTFE+Bz | |
| ATS-N 13x16x3,0 CGR A | 13,00 | 16,00 | 3,20 | 1,50 | PTFE+Carbon | |
| ATS-N 13x16x4,0 B40 A | 13,00 | 16,00 | 4,20 | 1,50 | PTFE+Bz | |
| ATS-N 13x16x4,9 B40 A | 13,00 | 16,00 | 5,10 | 1,50 | PTFE+Bz | |
| ATS-N 13x16x5,4 B40 A | 13,00 | 16,00 | 5,60 | 1,50 | PTFE+Bz | |
| ATS-N 13x16,1x2,3 CGR A | 13,00 | 16,10 | 2,50 | 1,55 | PTFE+Carbon | |
| ATS-N 13x16,1x3,8 B40 A | 13,00 | 16,10 | 4,00 | 1,55 | PTFE+Bz | |
| ATS-N 13x16,1x3,8 CGR A | 13,00 | 16,10 | 4,00 | 1,55 | PTFE+Carbon | |
| ATS-N 14x16x3,0 CGR A | 14,00 | 16,00 | 3,20 | 1,00 | PTFE+Carbon | |
| ATS-N 14x16x9,8 B40 A | 14,00 | 16,00 | 10,00 | 1,00 | PTFE+Bz | |
| ATS-N 14x17x3,0 B40 A | 14,00 | 17,00 | 3,20 | 1,50 | PTFE+Bz | |
| ATS-N 14x17x3,0 CGR A | 14,00 | 17,00 | 3,20 | 1,50 | PTFE+Carbon |
